t bend - Type SRM rollforming machines
Our multi tool - All options in one single machine!
Forming, cutting, post-bending cutting, threading.- For extreme forming degrees with highest precision
- Multiple machining steps possible in one cycle
- High machining speeds of up to 1500 rpm
- Low energy consumption and highest precision due to servo drives

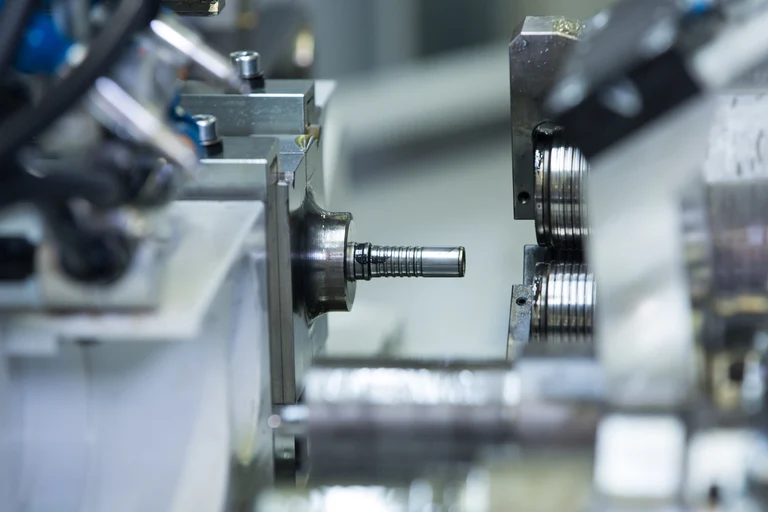

Getting flexible in tube end forming
Ideally suited for the production of challenging contours for sealing elements and for the generation of extremely good surfaces.
The right machine for your task
Product video
SRM ROLLFORMING MACHINES
| Max. capacity | 3/16" - 7/8" in |
| Wall thickness | .035" in |
| RPM | 300 - 1000 |
| Cycle time adjustable | 4 - 10 sec. |
| Operation length | max. 40 mm |
| Clamping length | 1,0 x D |
| Power | 4 kW |
| Weight | 2750 lb |
| L x W x H | 79 x 35 x 79 in |
| Max. capacity | 5/16" - 2 1/2" in |
| Wall thickness | .058" in |
| RPM | 300 - 1000 |
| Cycle time adjustable | 8 - 14 sec. |
| Operation length | max. 40 mm |
| Clamping length | 1,0 x D |
| Power | 8 kW |
| Weight | 3740 lb |
| L x W x H | 79 x 35 x 79 in |
| Max. capacity | 40–127,3 mm |
| Wall thickness | 2 mm |
| RPM | 50 - 450 |
| Cycle time adjustable | 6 - 14 sec. |
| Operation length | max. 80 mm |
| Clamping length | 1,0 x D |
| Power | 8 kW |
| Weight | 1700 kg |
| L x W x H | 2000 x 900 x 2000 mm |
| Max. capacity | 2" - 7" in |
| Wall thickness | .120" in |
| RPM | 80 - 280 |
| Cycle time adjustable | 15 - 50 sec. |
| Operation length | max. 100 mm |
| Clamping length | 1,0 x D |
| Power | 12 kW |
| Weight | 3740 lb |
| L x W x H | 94 x 35 x 87 in |
Your benefits at a glance
-
EXTREMLY SHORT CLAMPING LENGTH

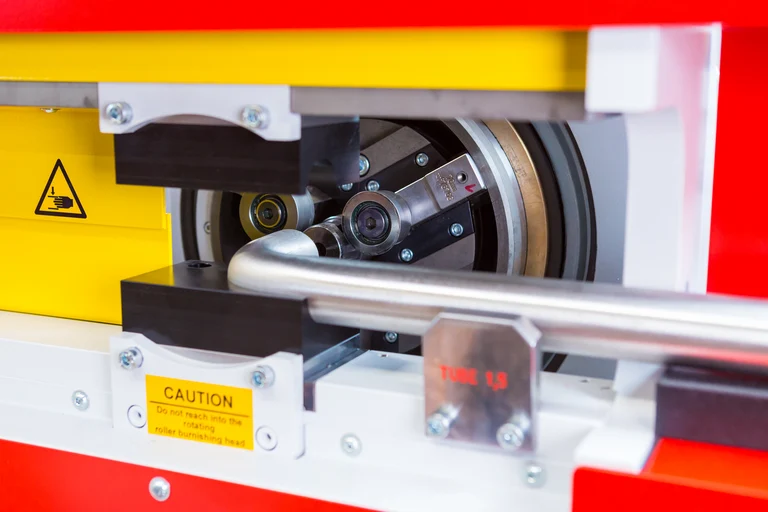

Clamping length depends on size of tube, approx. 1,0 x Ø. This gives the user the possibility to always perform the forming after the bending process.
-
SERVOELECTRIC DRIVES
All the drives are servoelectric by design and, if needed, CNC-operated.
-
FORMING DEGREES WITH HIGHEST PRECISION
Our rotational technology increase the possibilities of forming on tubes with minimal expenditure on tools.
-
EASY CONTROL VIA TOUCH PANEL
In our SRM typeforming machines, all the settings are preloaded, so there is no longer any need for costly adjustments.
-

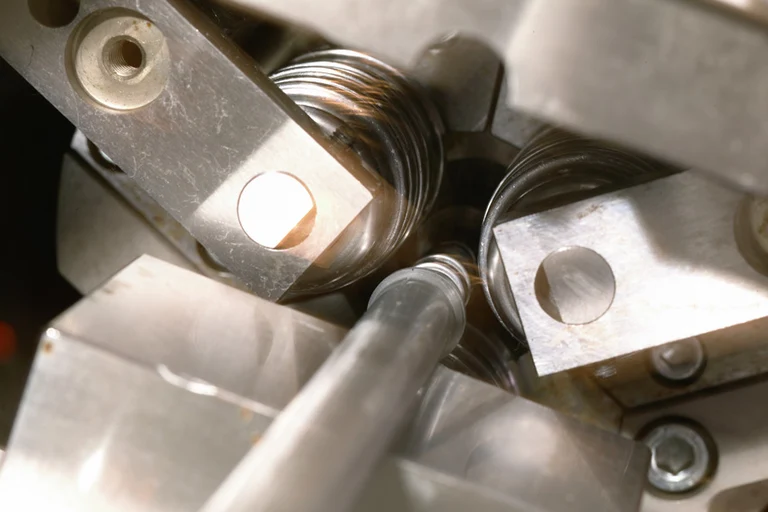

TRANSFORMATIONS WITH FUNCTIONAL SURFACES
The machines can produce internal and external profiles and can also roll in synchronicity thanks to a special tool head (inside/outside).
-
CHIPLESS CUTTING
Different tool variants further expand the processing possibilities for chipless cutting or post-bending cutting.
PREPARED FOR INTEGRATION INTO PRODUCTION CELLS
This series will win you over with its special stability and performance. Individual pieces and small series can be produced in an extremely economical manner with this machine concept. The use of high-value components ensures the machine‘s durability.
EASY CONTROL VIA TOUCH PANEL
Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.
The UMR is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.
Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter.
Our new generation of t form SRM machines reduces the set-up time when changing the tools and the operator can set up the machine in a few minutes.

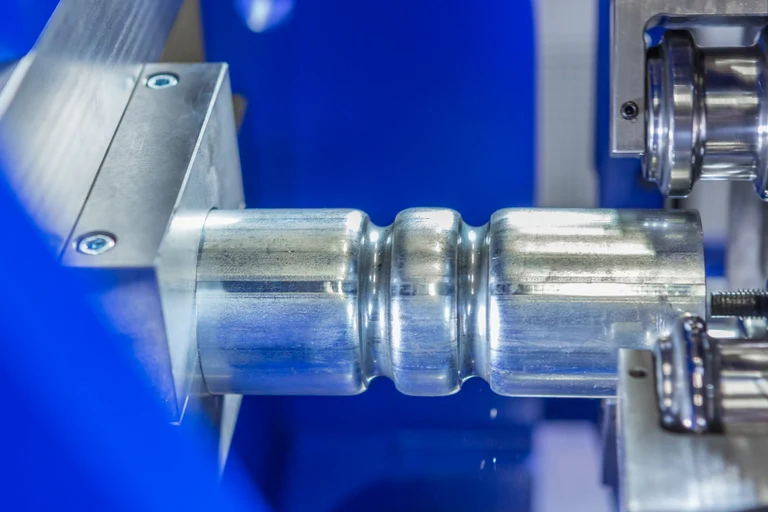

The solution for any geometry with outstanding sealing surfaces
Tailored to your individual requirements and needs, we create optimal solutions with our expertise.
