t form - Type UMR rollforming machines
produces perfect and mirror-like sealing surfaces

For the production of 37°, 45°, 90° and ORFS flanging
Extremely short clamping lengths (from 1xD)

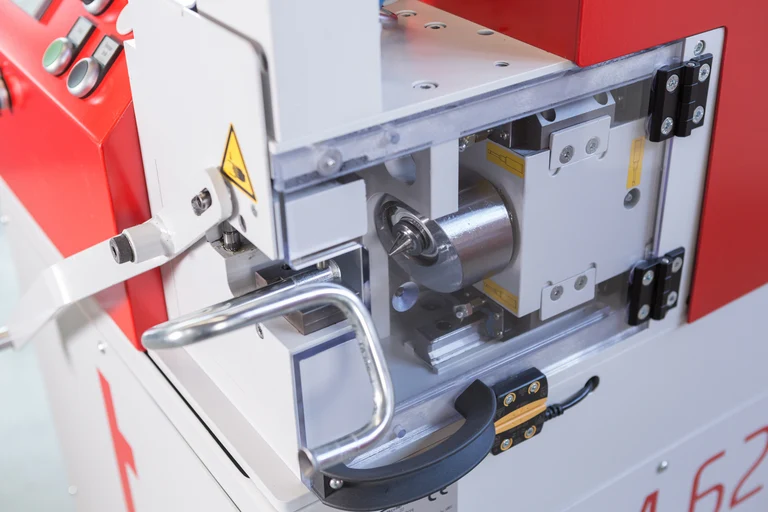

Simple, fast and easily accessible tool change
Feeding of ORFS o-rings
Easy visualization via touch panel

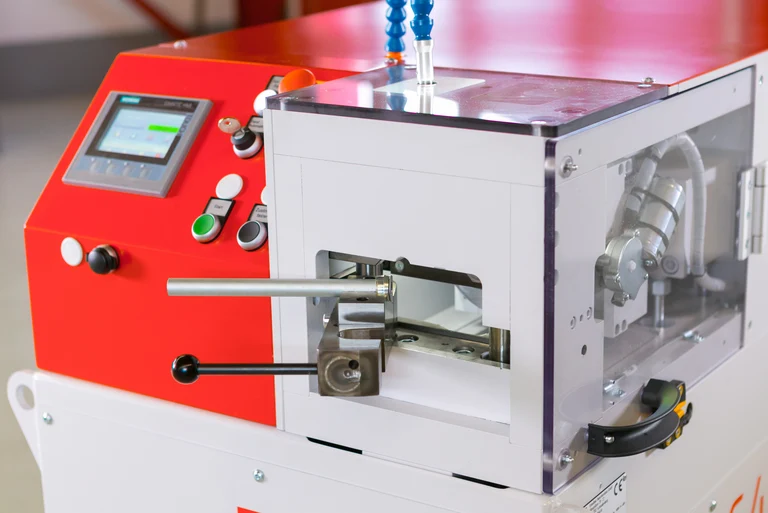

transfluid^® t form UMR ROLLFORMING MACHINES
Powerful and fast forming.

The type UMR tube forming machines use smart operating technology with many predefined settings that can be retrieved automatically to achieve perfect mirror-like surfaces.

When producing flares with 20°-90° angles, with a clamping length of 1 x D, the machine achieves perfect sealing surfaces. Flaring up to 90° can be produced in a single cycle. Tools can be changed extremely quickly. With the appropriate tools, the machine can also close tube ends.

Faster pipe end forming and better surfaces

t form UMR forming machine from transfluid with easy tool change and minimized operator input

The right machine for your task

Product video

Images /

Product video

Images /

Product video

Images /

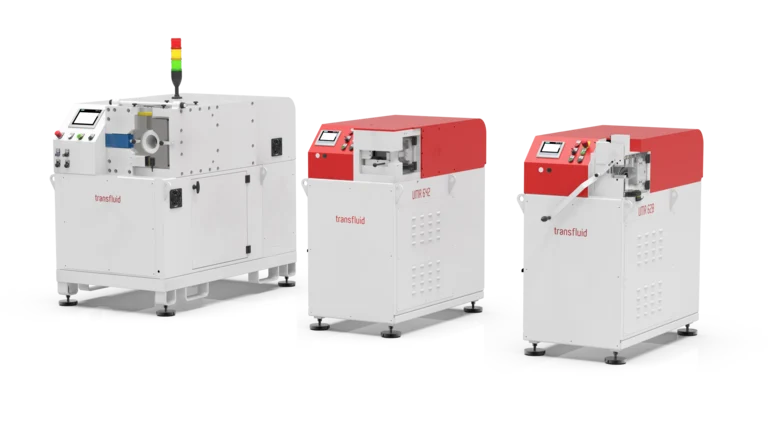

UMR ROLLFORMING MACHINES

choose tube diameter

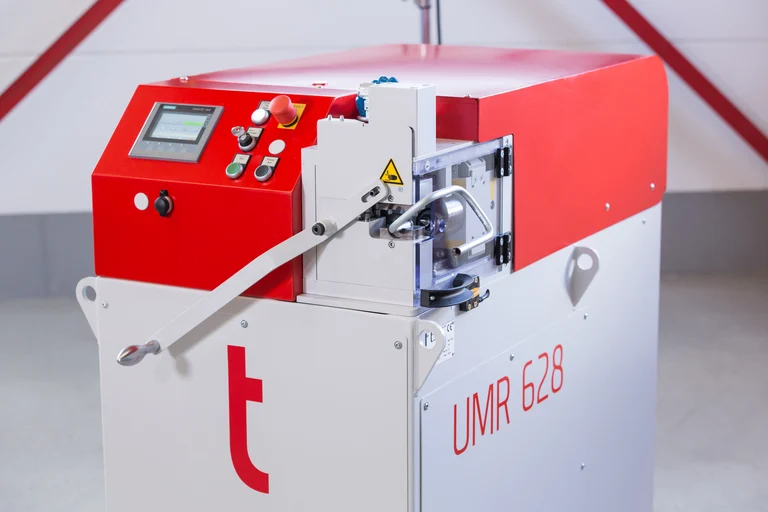

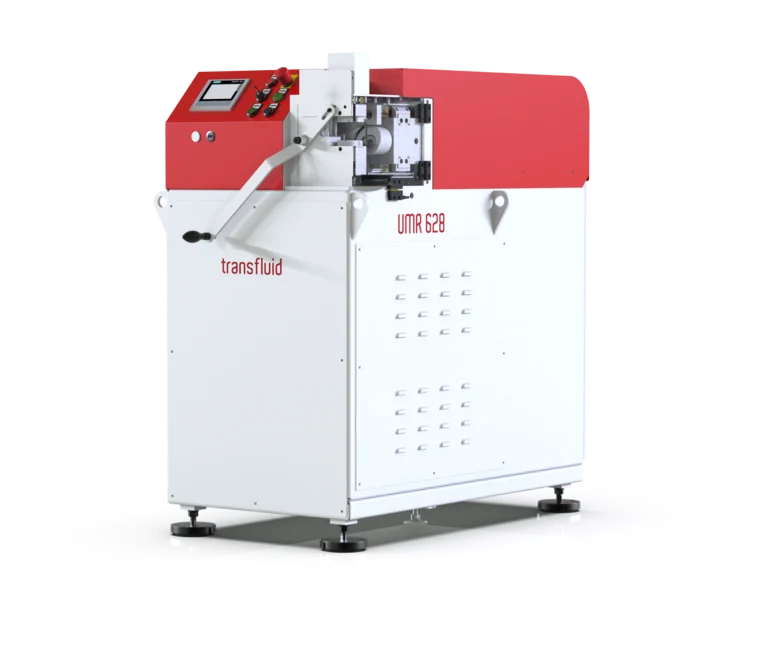

Type: UMR 628

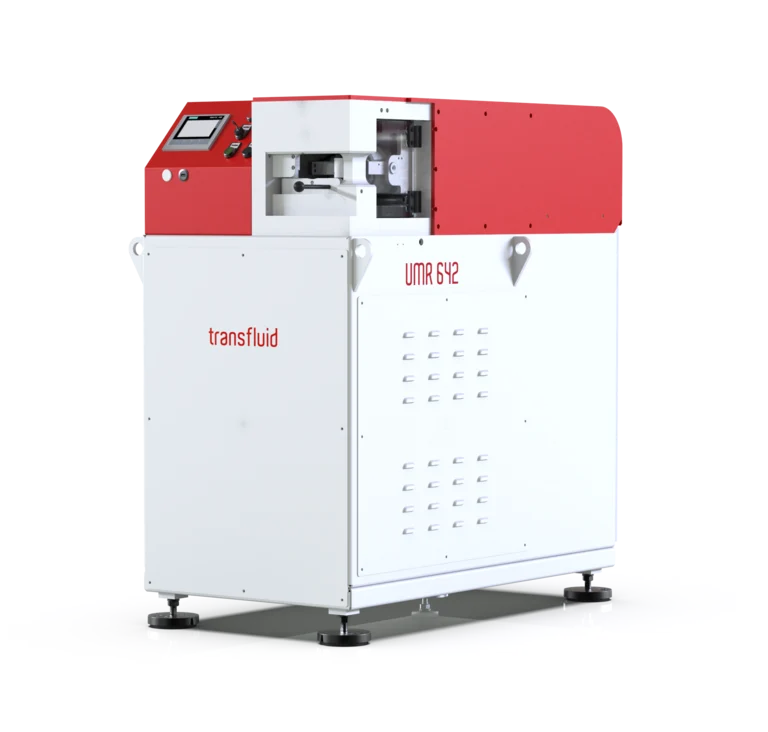

Type: UMR 642

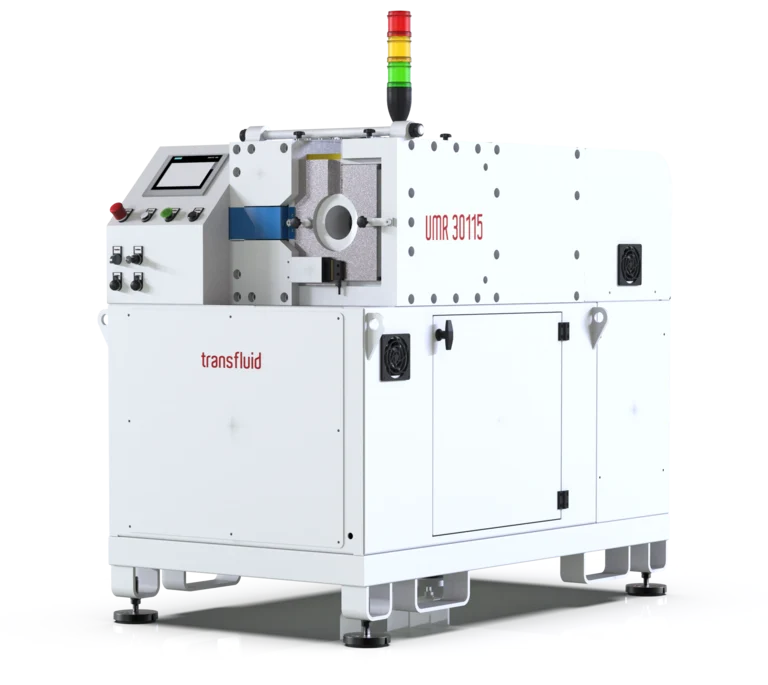

Type: UMR 30115

Max. capacity	1/4" - 1 1/16" in
Wall thickness	.035" in
Steel pipe	1/4 - 3/4"
RPM	603
Cycle time adjustable	4 - 10 Sec.
Forming length	0,59 in
Clamping length	1,0 x D
Power	1,3 kW
Weight	1100 lb
L x W x H	39 x 26 x 55 in

Max. capacity	6 - 42 mm
Wall thickness	4,0 mm
Steel pipe	12,9 - 26,2 mm
RPM	200
Cycle time adjustable	4 - 15 Sec.
Forming length	25 mm
Clamping length	1,0 x D
Power	4,5 kW
Weight	1000 kg
L x W x H	1000 x 650 x 1400 mm

Max. capacity (in)	1/4" - 1 5/8"
Wall thickness (in)	.148"
Steel pipe	1/4 - 1 1/4"
RPM	200
Cycle time adjustable (sec.)	4 - 15
Forming length (in)	1
Clamping length	1,0 x D
Power (kW)	4,5
Weight (lb)	2200
L x W x H (in)	39 x 26 x 55

Your benefits at a glance

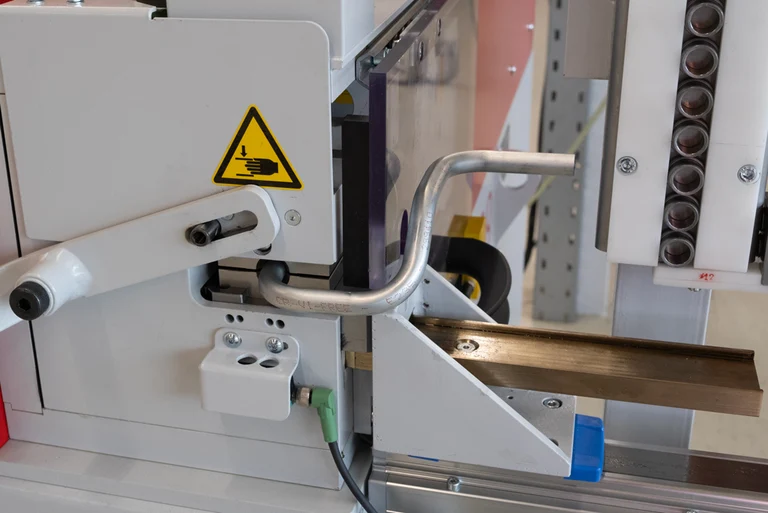

EXTREMLY SHORT CLAMPING LENGTH

The possible clamping lengths for machining are 1 to 1.5 x the tube diameter. This gives the user the possibility to always perform the forming after the bending process.

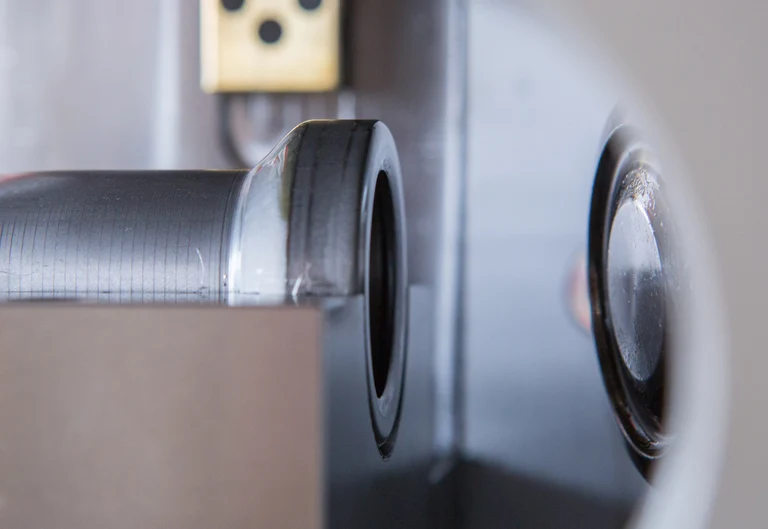

PERFECT SEALING SURFACES

Feeding and specially contoured clamping jaws for ORFS rings.

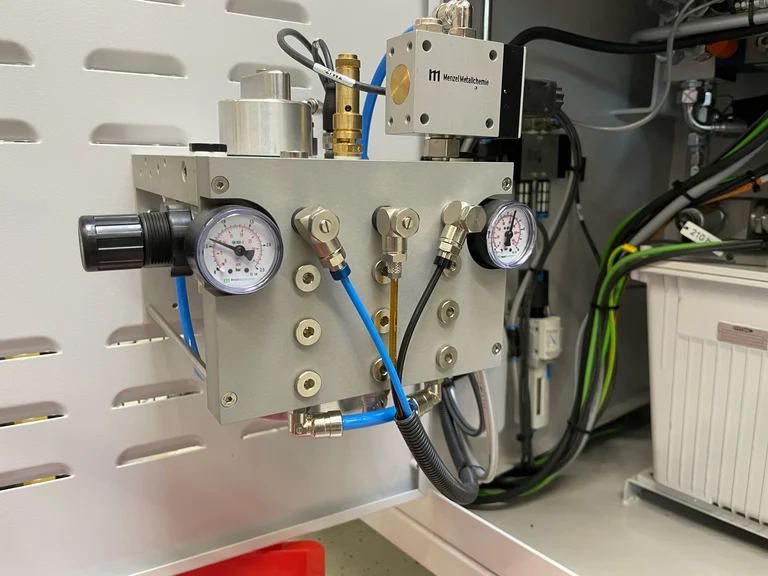

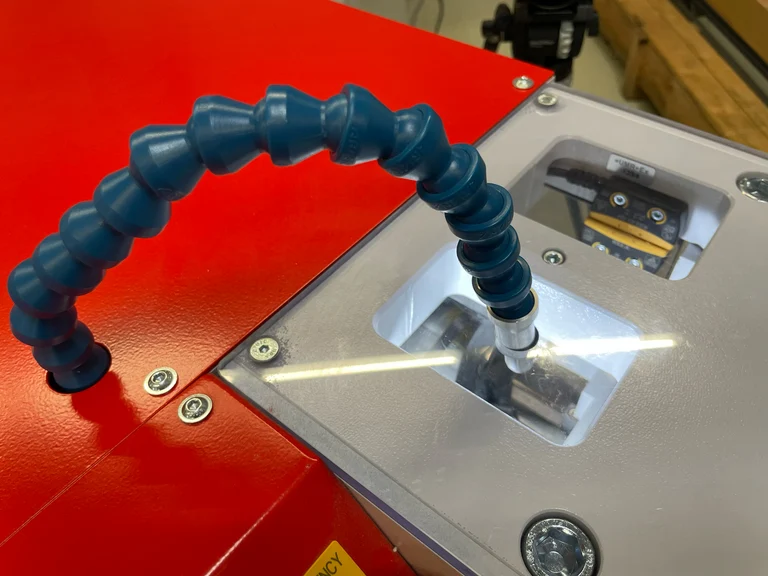

OPTIMIZED MACHINE DESIGN

The extremely narrow workhead makes retrograde 180° bend possible. The size of the flare can be determined with the length of the electric length stop. Adjusting the duration, speed and the power of the forming optimizes the surface.
EASY CONTROL VIA TOUCH PANEL

Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.
FLEXIBLE AND VERSATELITE FORMING

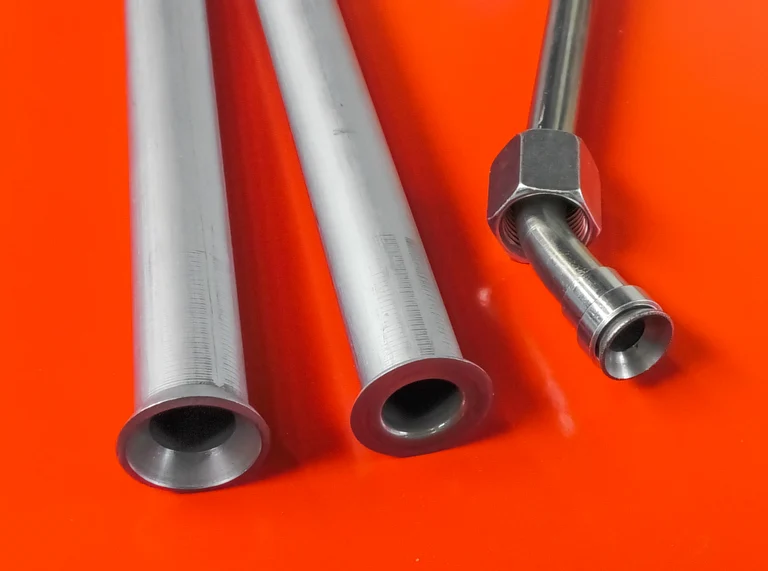

One machine for the production of 37°, 45°, 90° and ORFS flanging.
TRANSFORMATIONS WITH FUNCTIONAL SURFACES

In addition to rolling from the inside out, these systems can also form from the outside in.

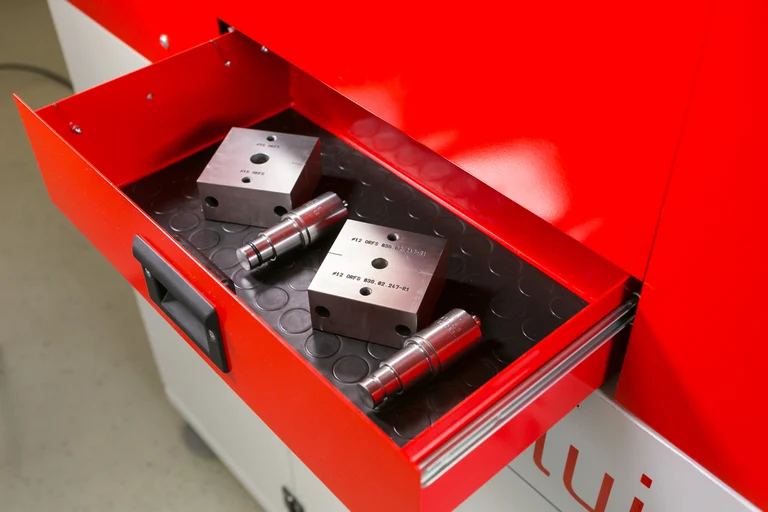

INTEGRATED TOOL DRAWER

For safe storage of the clamping jaws and tumbling tools.

Images 1/0

INCORRECT PARTS IMPOSSIBLE!

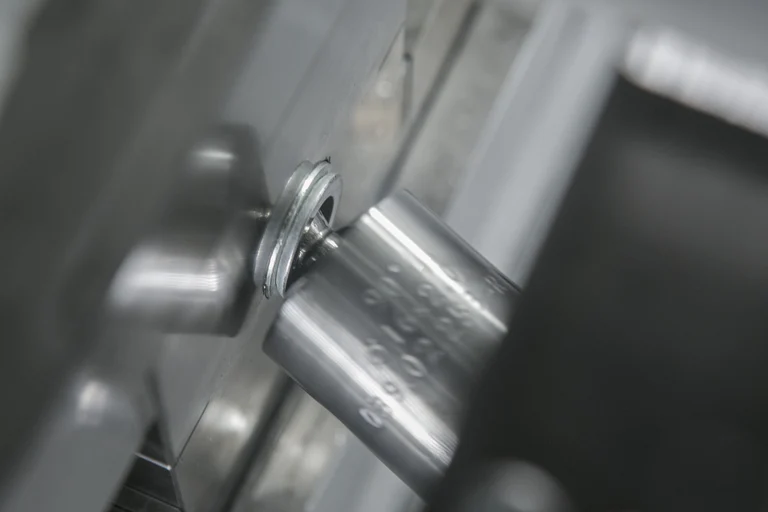

ORFS CONNECTIONS MANUFACTURED SEMI-AUTOMATICALLY

With the semi-automatic ORFS ring feeder, transfluid has developed a cost-effective solution for the safe and effective production of small, medium and even large batch sizes.

Further Information

PREPARED FOR INTEGRATION INTO PRODUCTION CELLS

This series will win you over with its special stability and performance. Individual pieces and small series can be produced in an extremely economical manner with this machine concept. The use of high-value components ensures the machine‘s durability.

Watch the movie

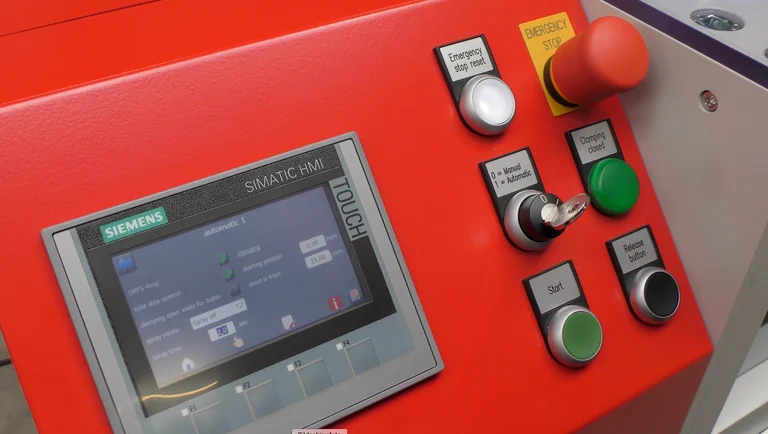

EASY CONTROL VIA TOUCH PANEL

Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.

The UMR is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.

Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter.

Our new generation of t form UMR 628, 642 and 30115 machines reduces the set-up time when changing the tools and the operator can set up the machine in less than three minutes.
