HIGH RESOLUTION PIPE INSPECTION

Increased productivity and quality through high-speed pipe measurement.

  • High-speed measurement in only 3 seconds
  • Measurement versatility
  • High-resolution 12 megapixel cameras
  • Integrated control monitor
  • Integration into robotic manufacturing cells
  • Sophisticated software
  • ISO certification

Tube measurement in bending technology

The dimensional accuracy of bent tubes is often influenced by variations in material properties. Deviations between the CAD planning data and the manufactured component occur and lead to tube geometries outside the required tolerance.



Manufacturing tolerances

In order to maintain these manufacturing tolerances, we offer the networking of our CNC controlled tube bending machines with different measuring systems.

Automatic correction

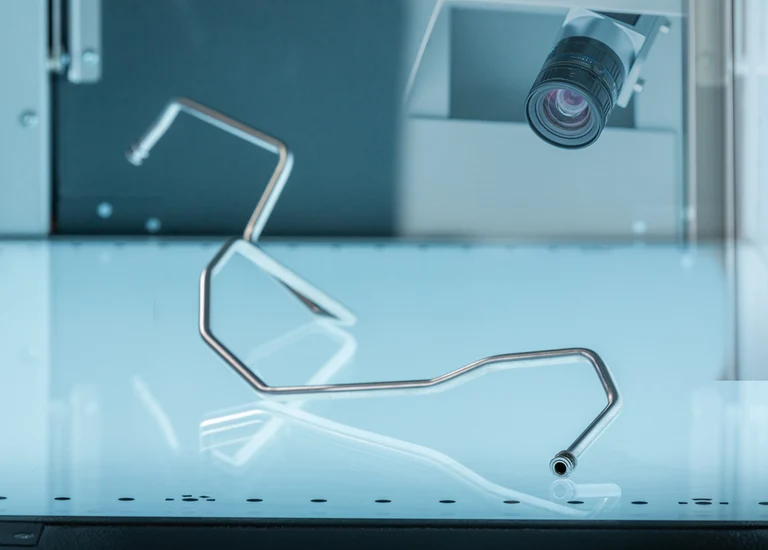

Measuring cells specially developed for efficient quality control of bent tubes use high-resolution digital cameras to scan the tube geometries of the initial sample in just a few seconds. The actual values of the manufactured component are compared with the nominal values of the stored reference geometry and the bending parameters are automatically corrected.



For the manufacturing process, the new optimized data is updated in the bending table and the manufacturing process can be executed safely with consistent quality.

Monitoring and documentation

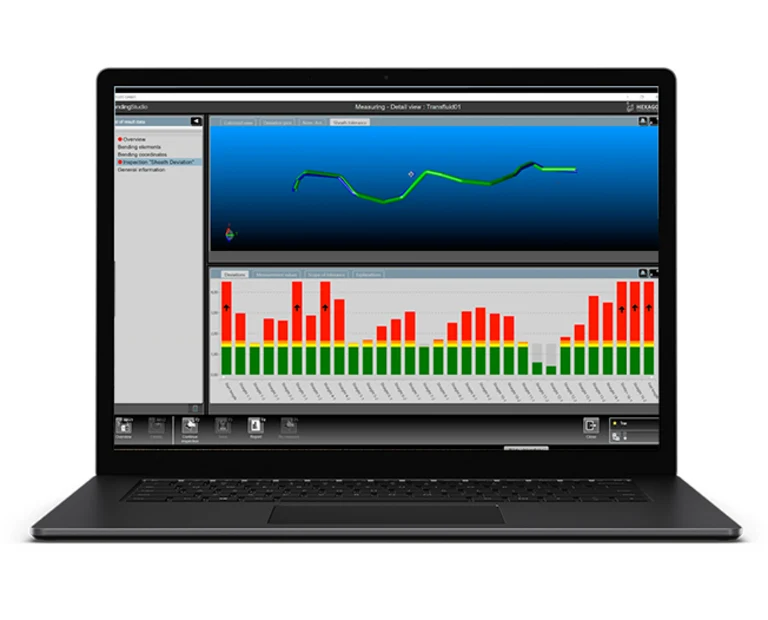

The captured data can be automatically compiled into detailed measurement reports for efficient quality control. This allows manufacturers to monitor and document all changes across all process steps.

Mobile pipe measurement

Features and advantages

Universally applicable

Autarkic use due to WiFi and battery operation

Measurement of hidden points

Sophisticated software

ISO certification

Speed and flexibility.

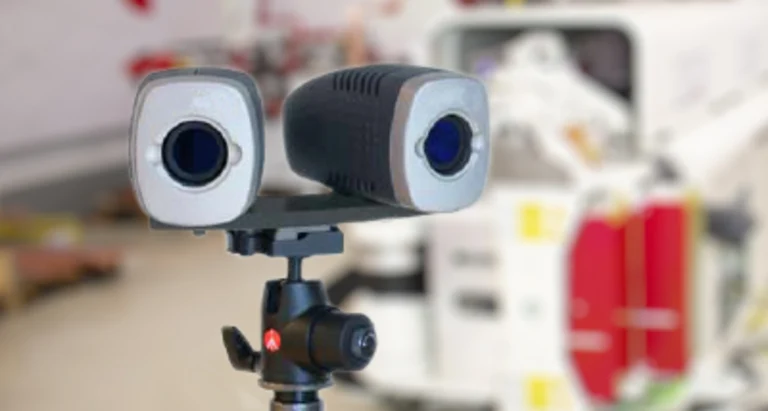

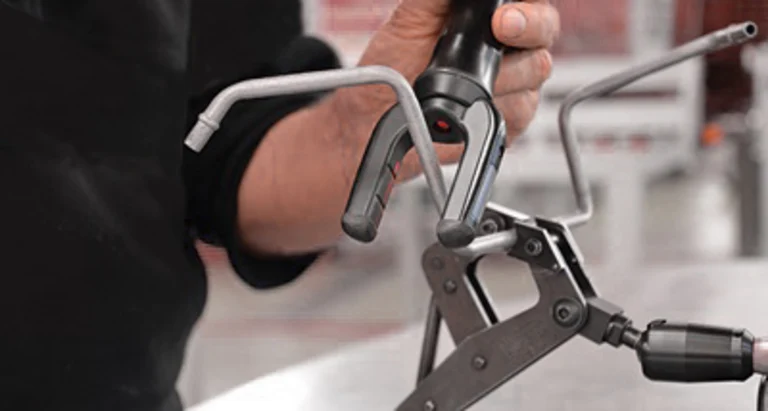

In addition to stationary measuring cells, we also offer networking with mobile measuring systems. High-end laser scanners, infrared probes or electro-optical coordinate measuring systems offer highest measuring accuracy even for complex tube or wire geometries. With just a few movements, the complete tube geometry is captured.

Accelerated measuring and testing process

The software then transfers the determined correction data directly to the bending machine via common interfaces. This accelerates the measuring and inspection process during tube production or reverse engineering of tubes and tube assemblies.
