ABSOLUTE INNOVATION

IN TUBE BENDING TECHNOLOGY

right/left bending up to

 ø 2 3/4"

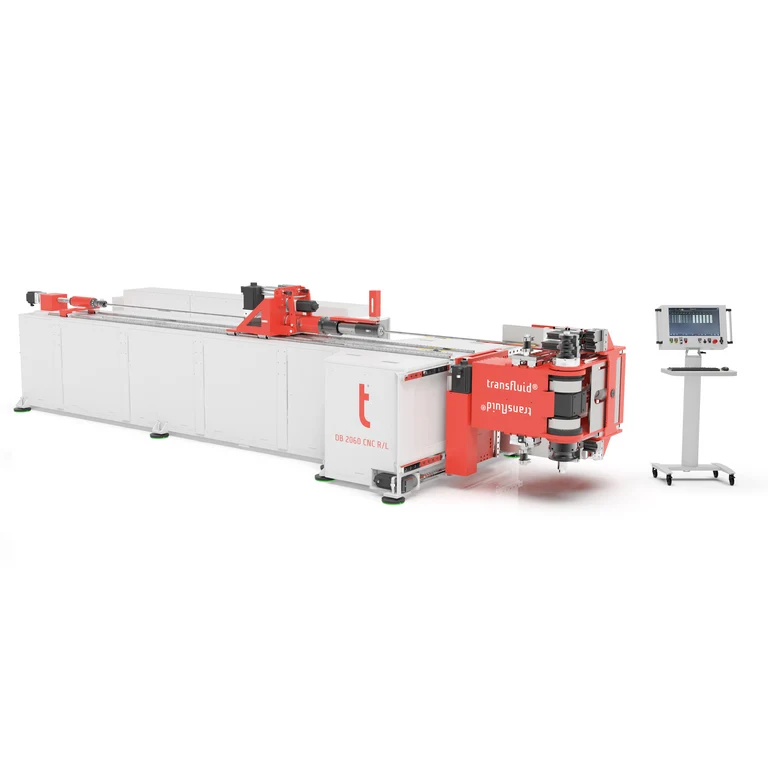

Bend tubes up to 2 3/4" diameter right and left with our new transfluid DB 2060-CNC-RL tube bending machine.

Go to the machine page

Powerful, fast and versatile.

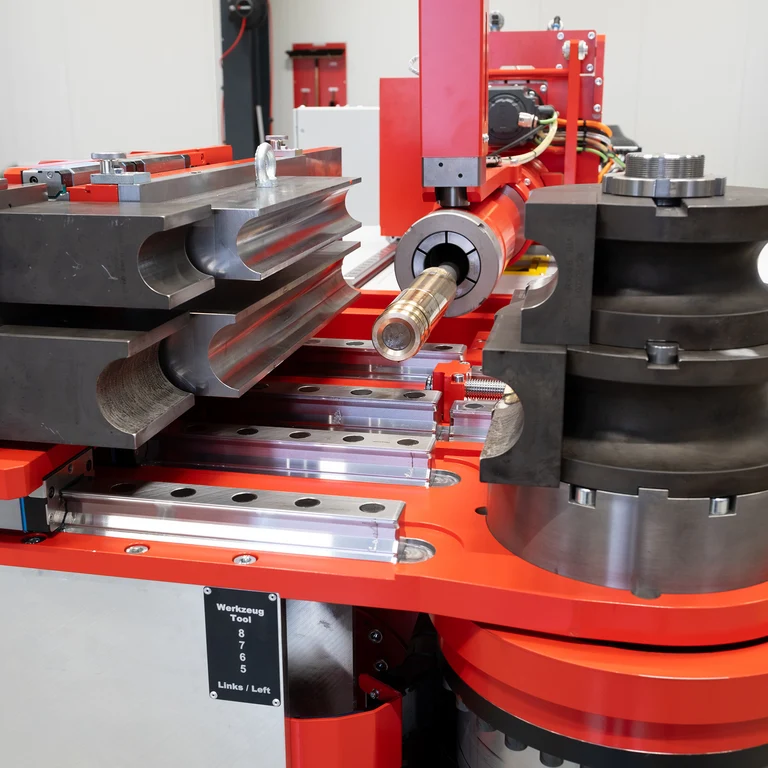

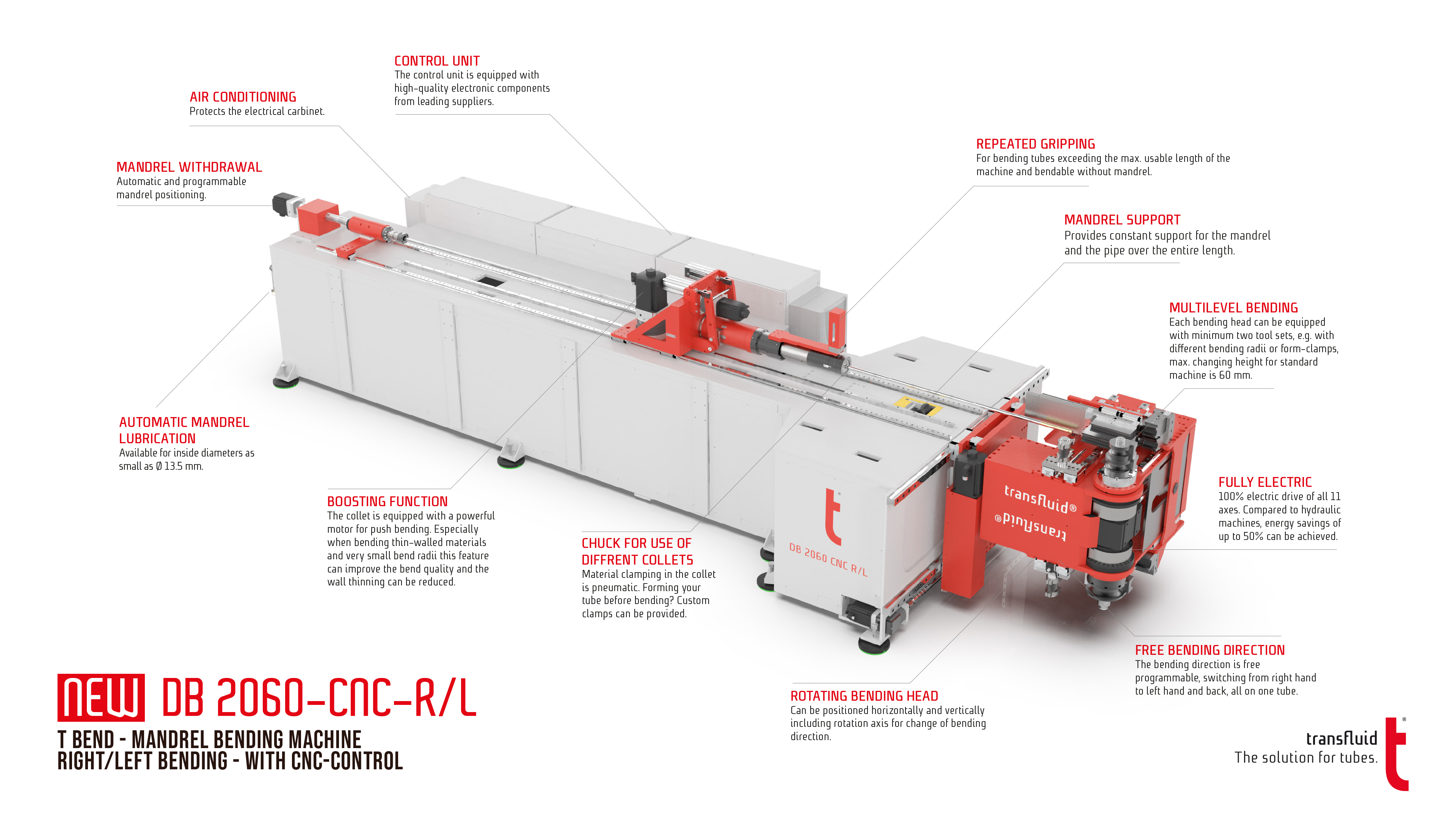

With the new T bend CNC mandrel bending machines of the type DB 2060-CNC-R/L, steel, stainless steel and non-ferrous metal tubes can be bent as round tubes or profiles from 1/4" - 2 3/4".



These electrically driven bending machines are designed for the production of large quantities, with efficient energy consumption thanks to economical servo technology. Small and medium wall thicknesses can be processed with perfect bend quality at tight bending radii from 0.8xD.

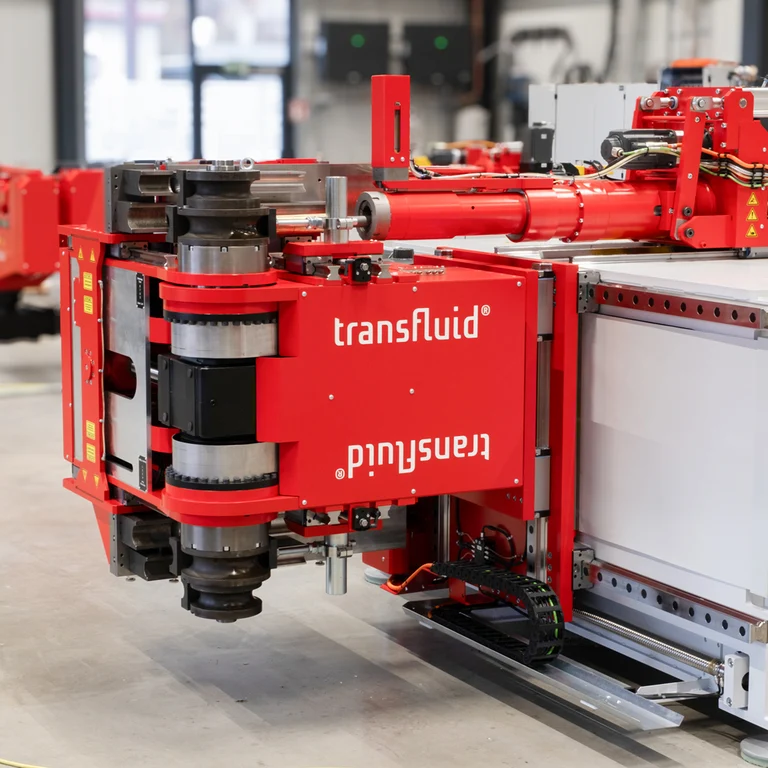

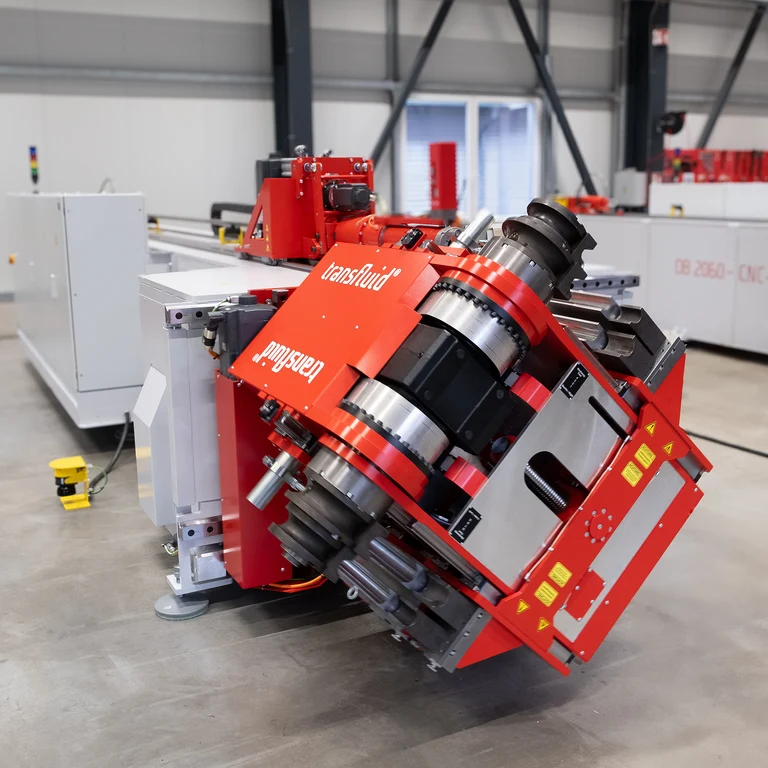

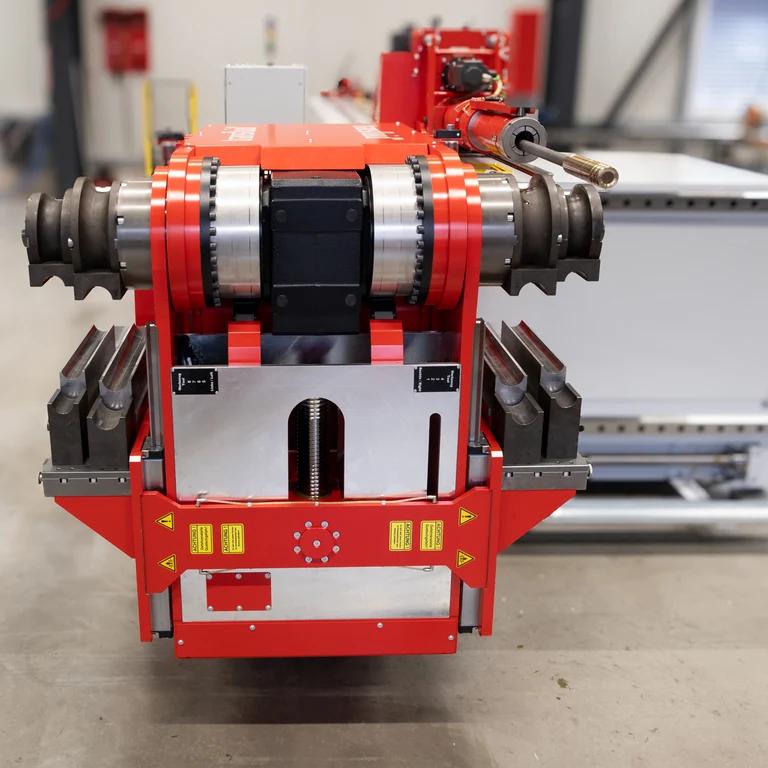

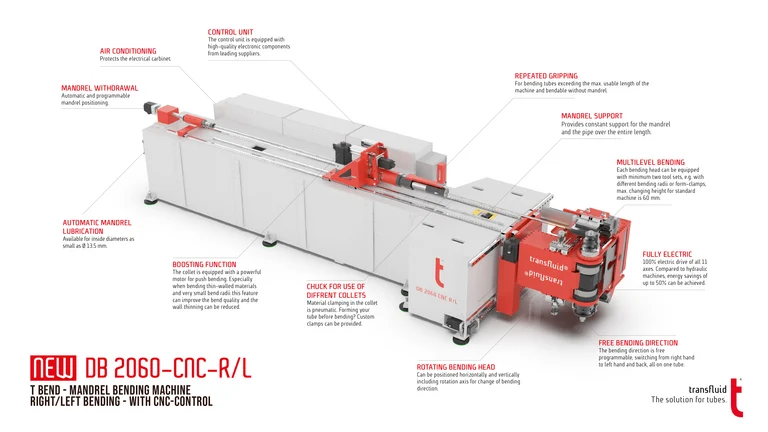

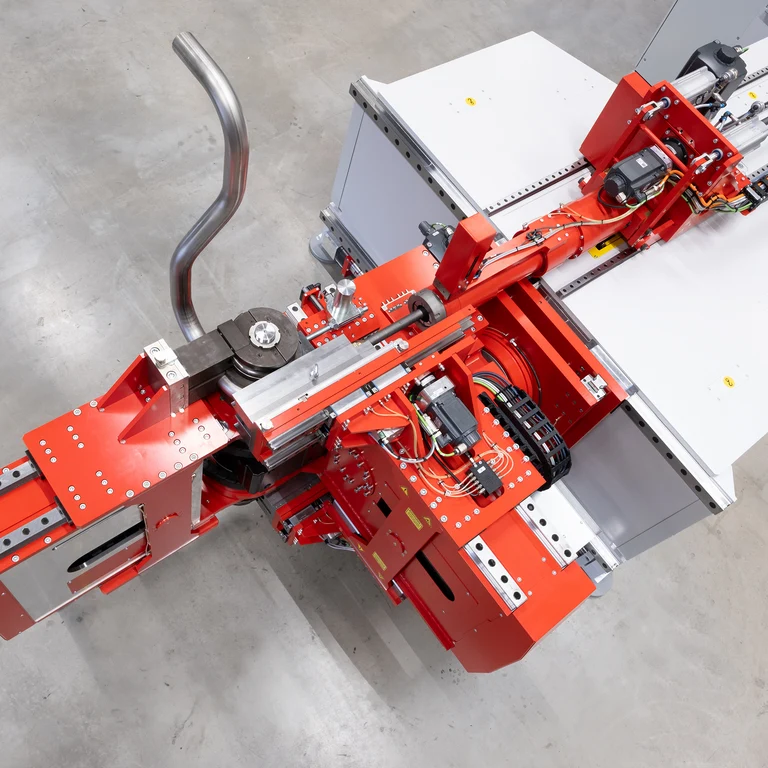

New bending machine Db 2060 CNC RL

transfluid® t bend DB CNC-R/L

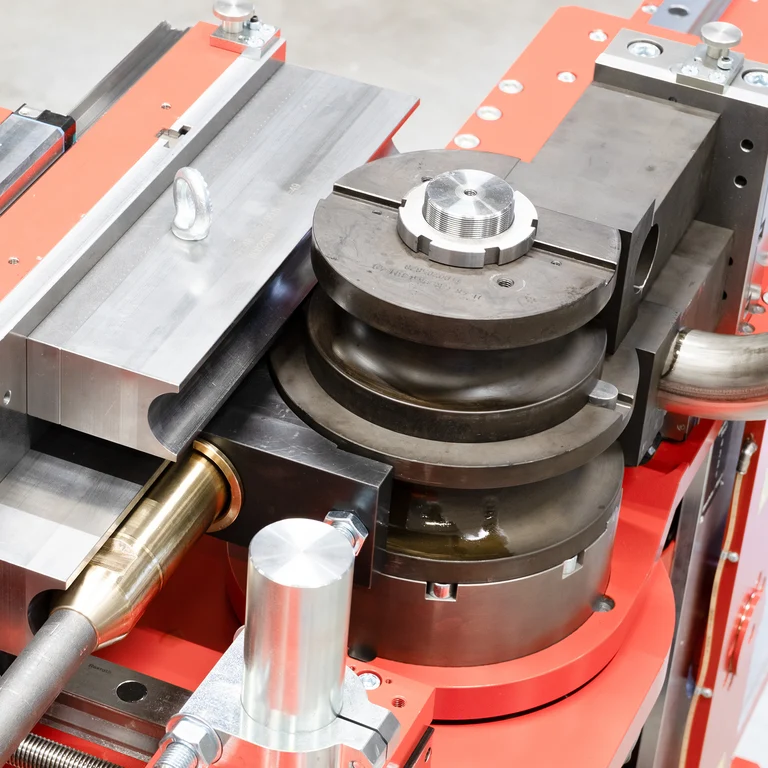

Special tool change systems enable fast set-up times. Extensive accessory options such as segment collets for processing tubes with already formed tube ends, boosting for free-forming or integrated tube cutting functions enable uncompromising bending possibilities. The whole prepared for integration into production cells and „ready for Industry 4.0“.



With our clockwise/counterclockwise bending machines – also available with push bending function – the most complex bends become reality with great accuracy.

To the overview

The right machine for your task

Product video Product video
arrow-left
Images /
arrow-right
Product video Product video
arrow-left
Images /
arrow-right
Product video Product video
arrow-left
Images /
arrow-right

MANDREL BENDING MACHINES Right/Left DB 2060

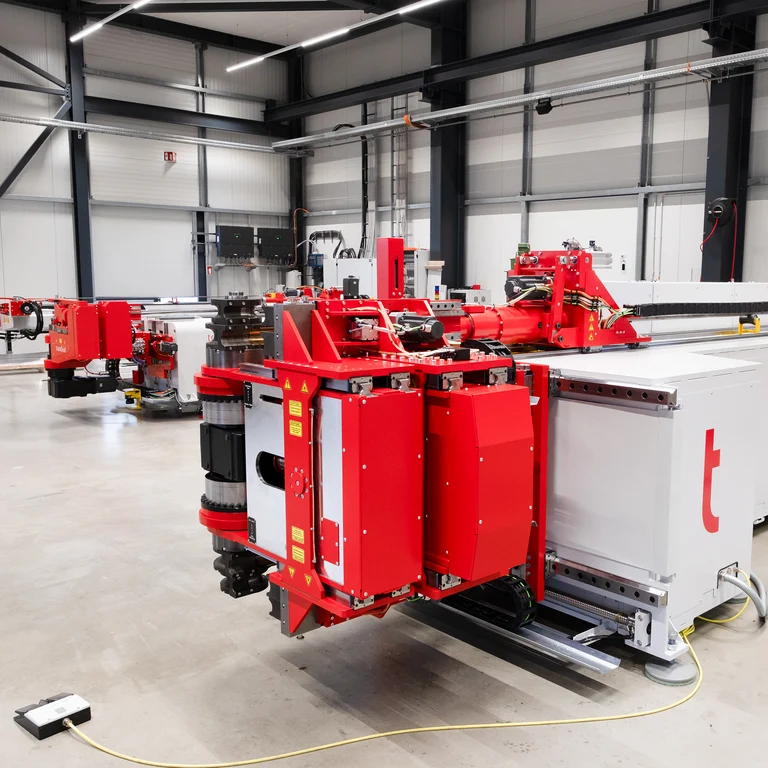

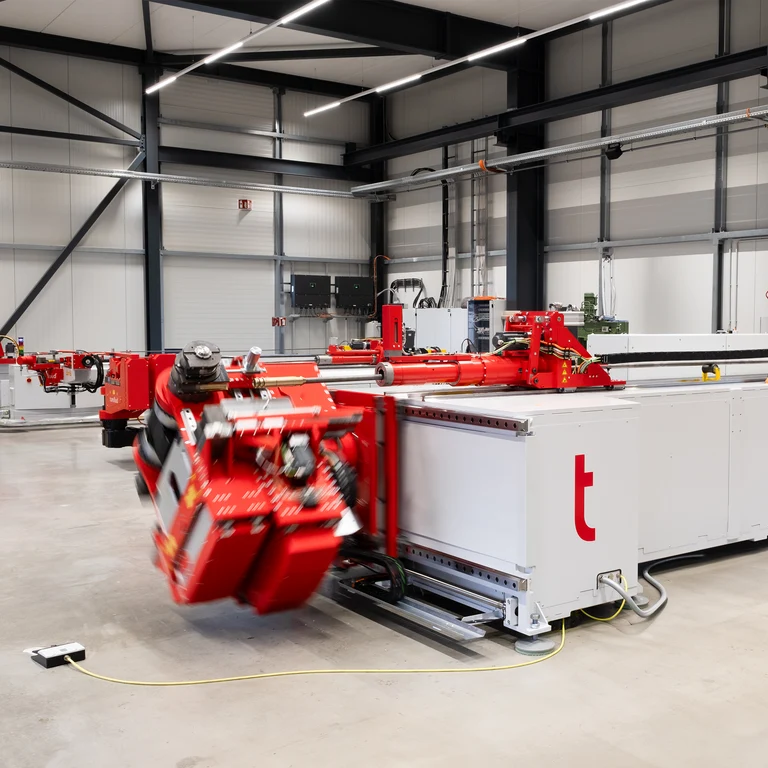

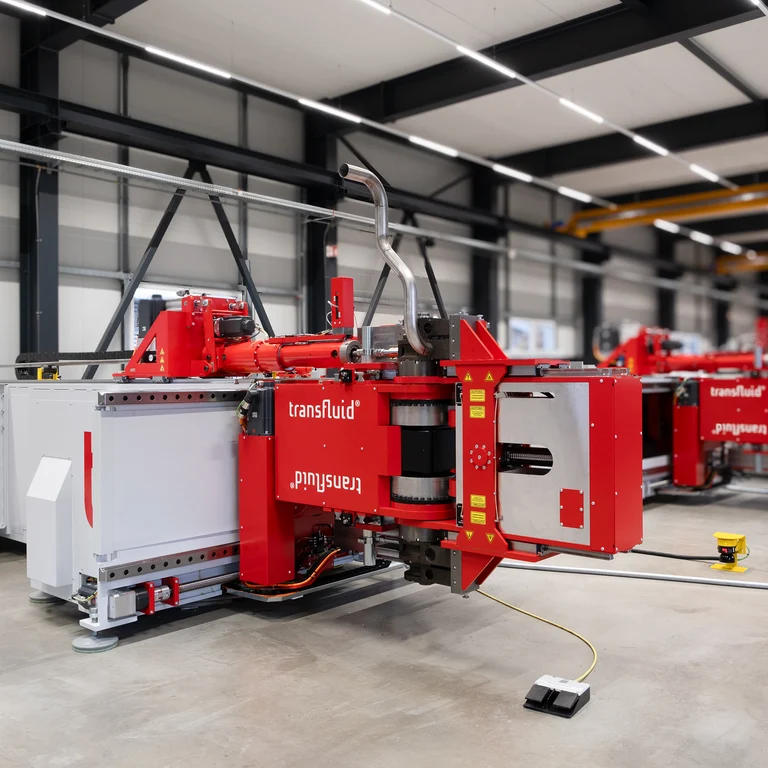

Type: DB 2060-CNC-R/L
file Download technical data

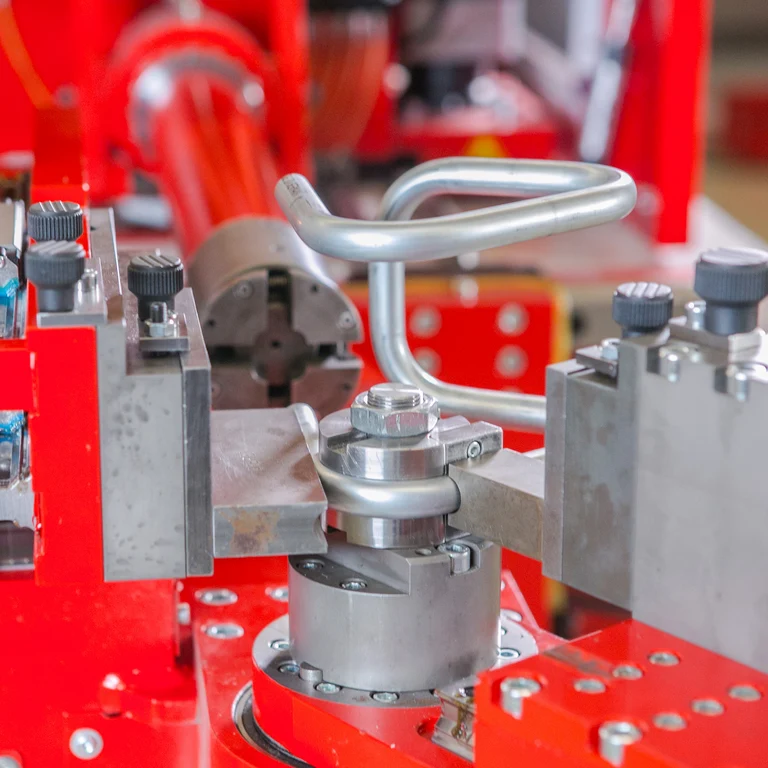

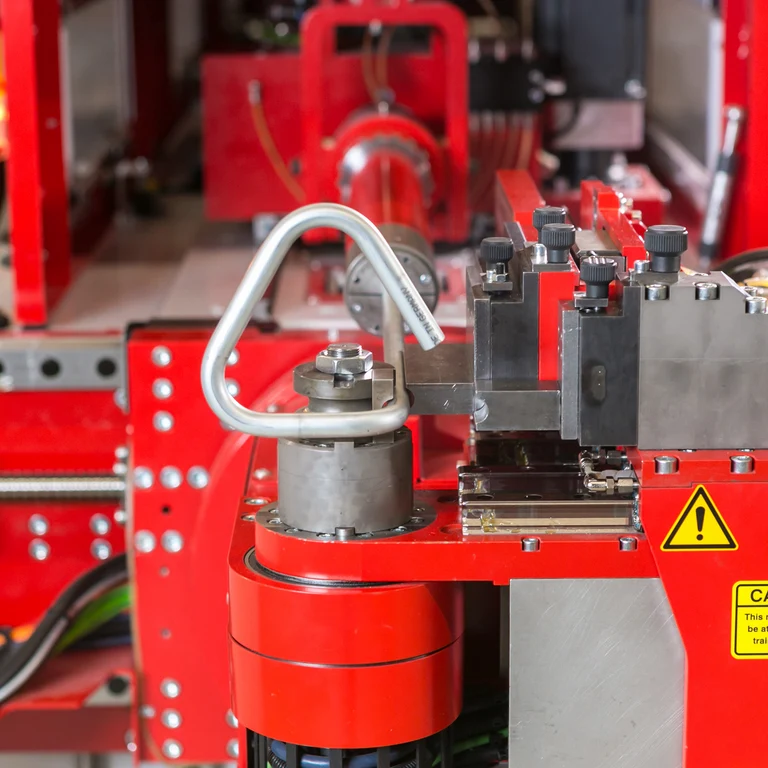

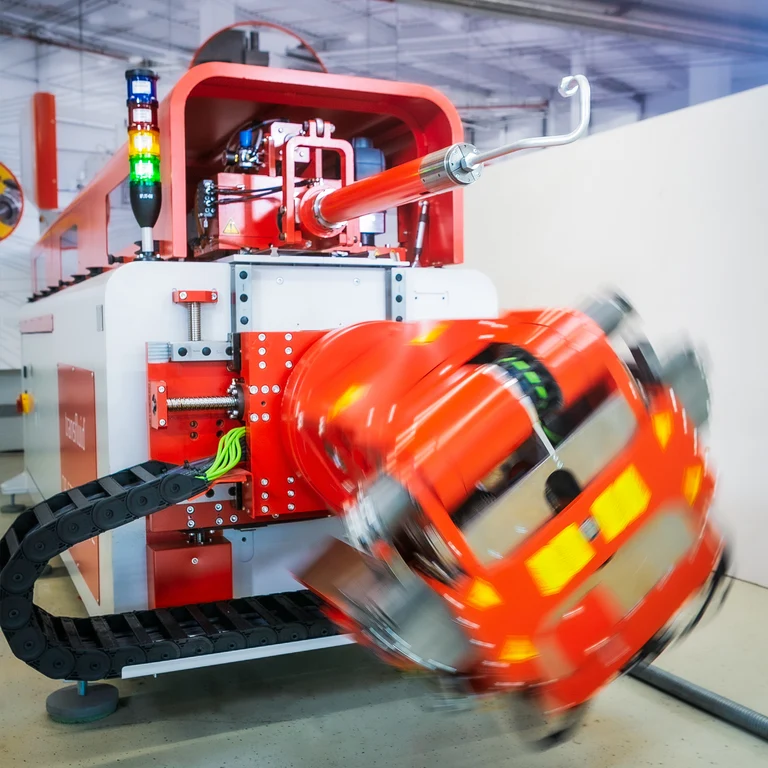

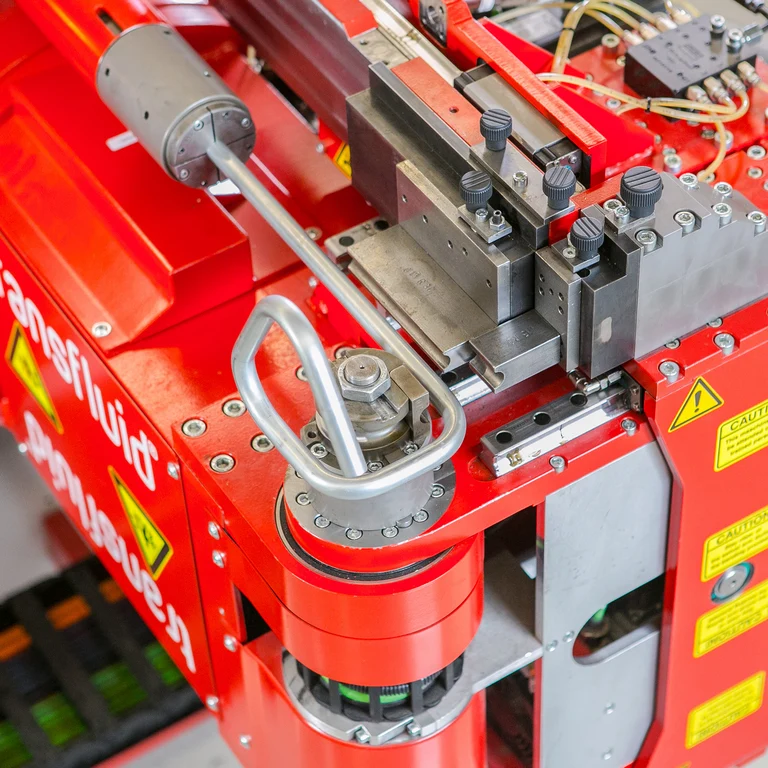

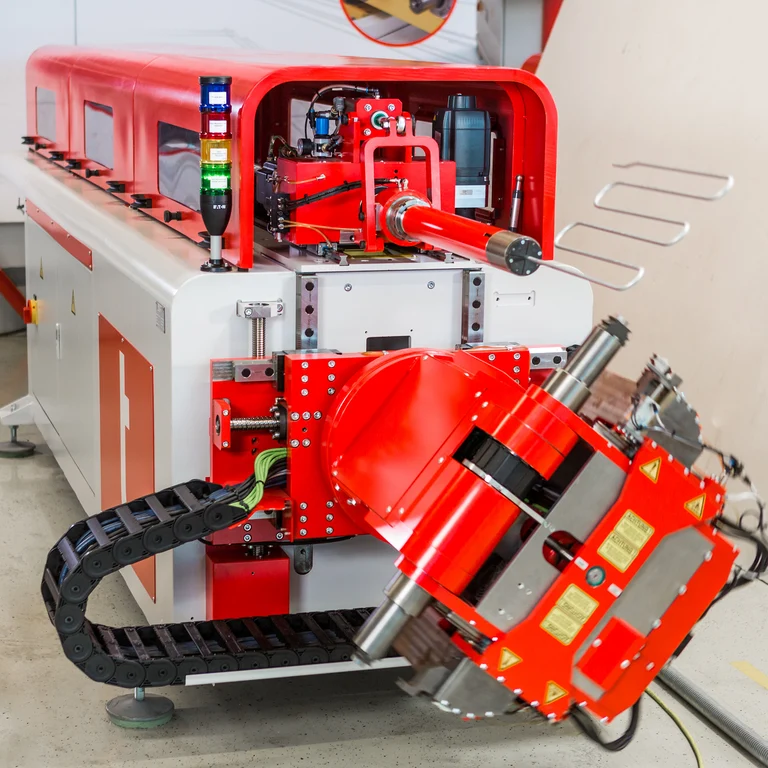

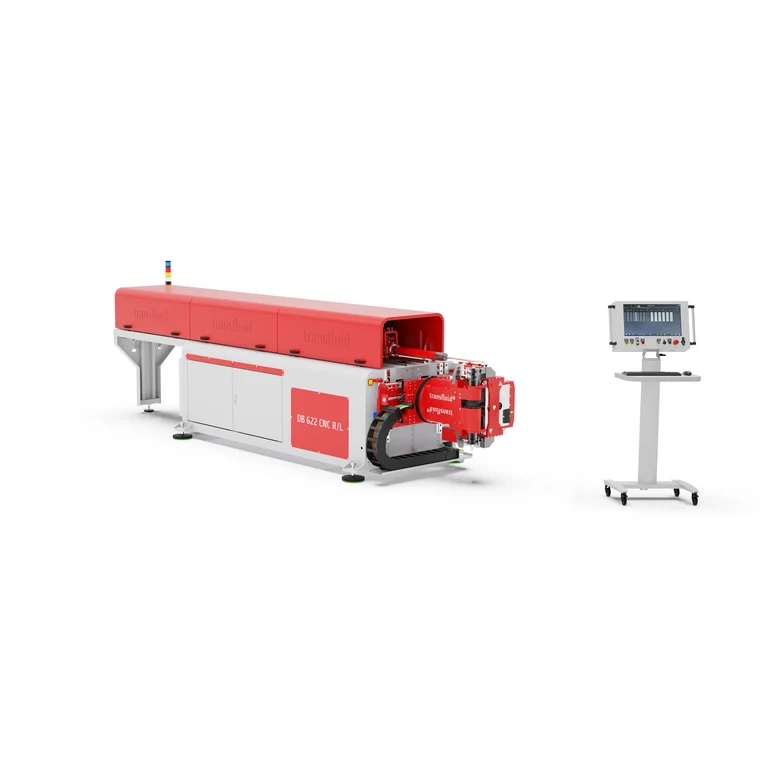

Type: DB 622-CNC-R/L
file Download technical data

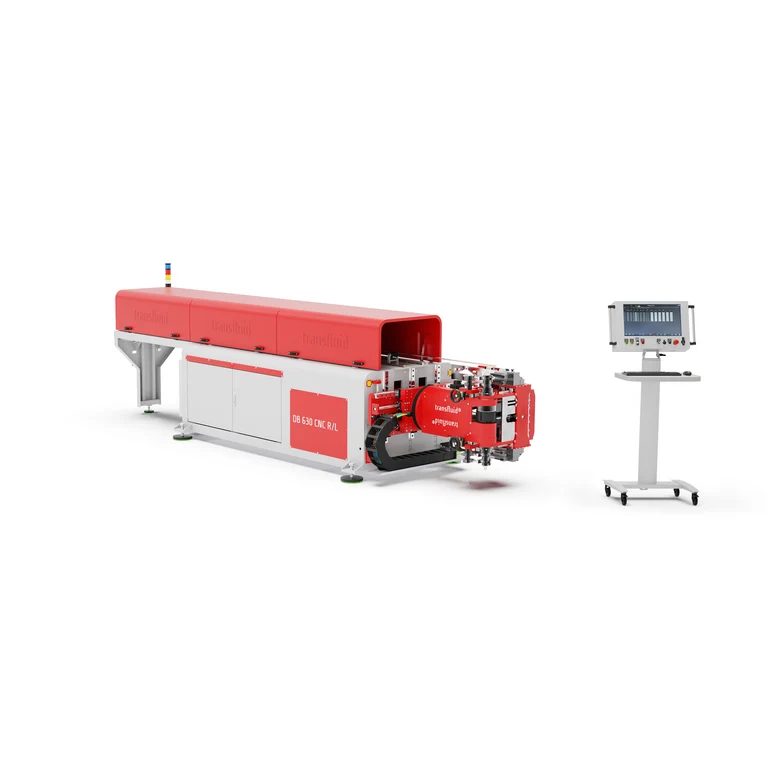

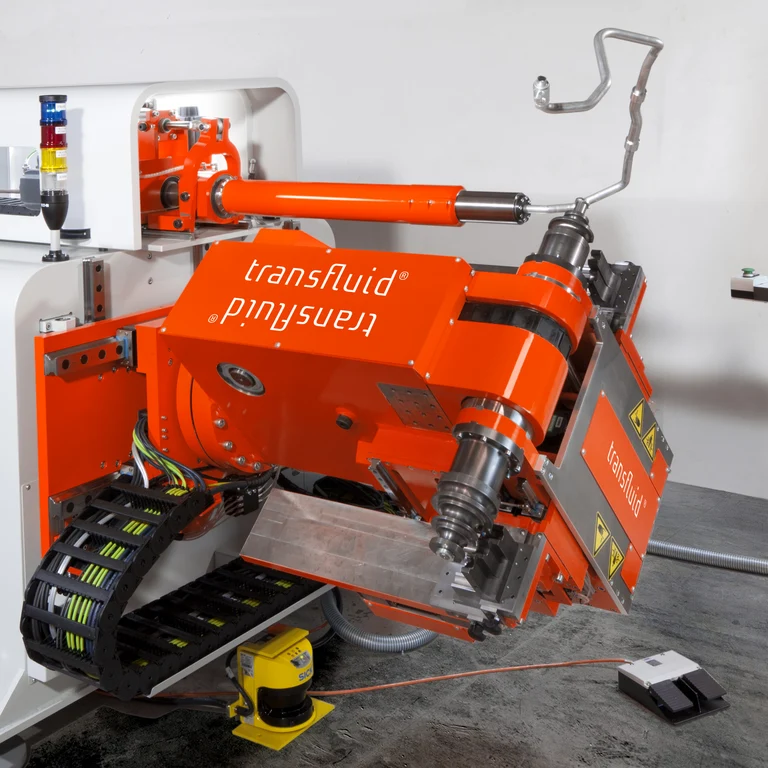

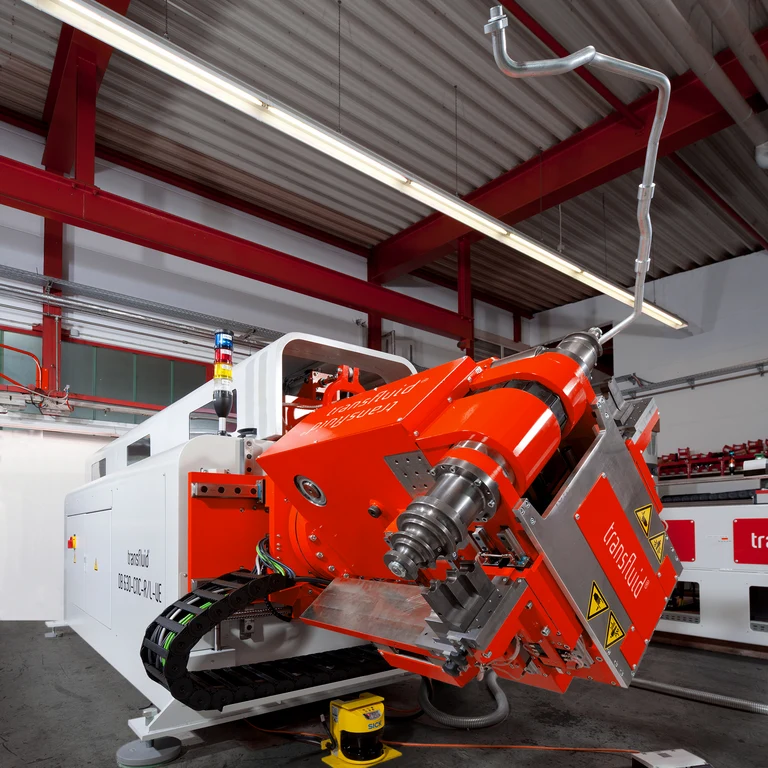

Type: DB 630-CNC-R/L
file Download technical data

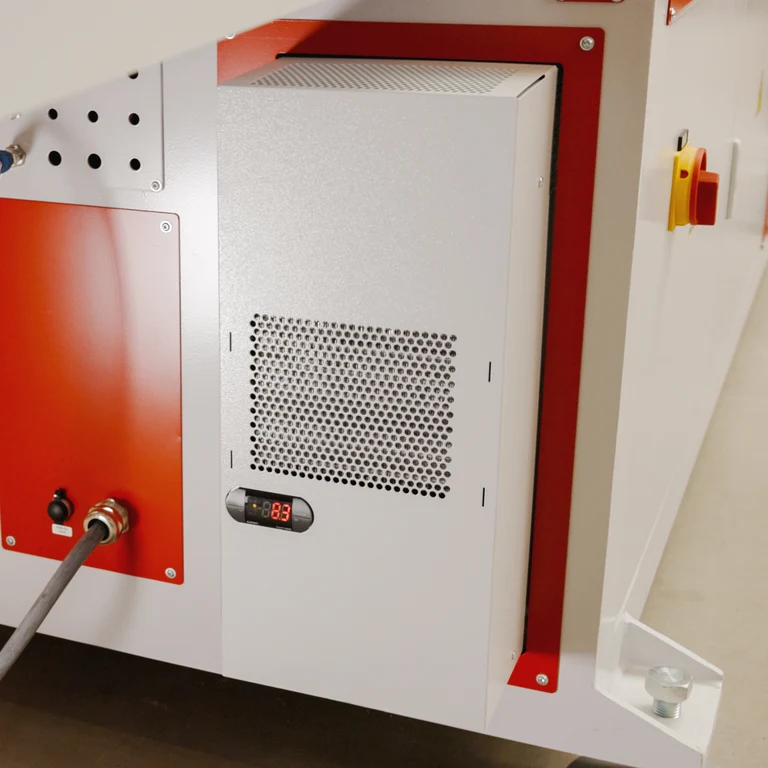

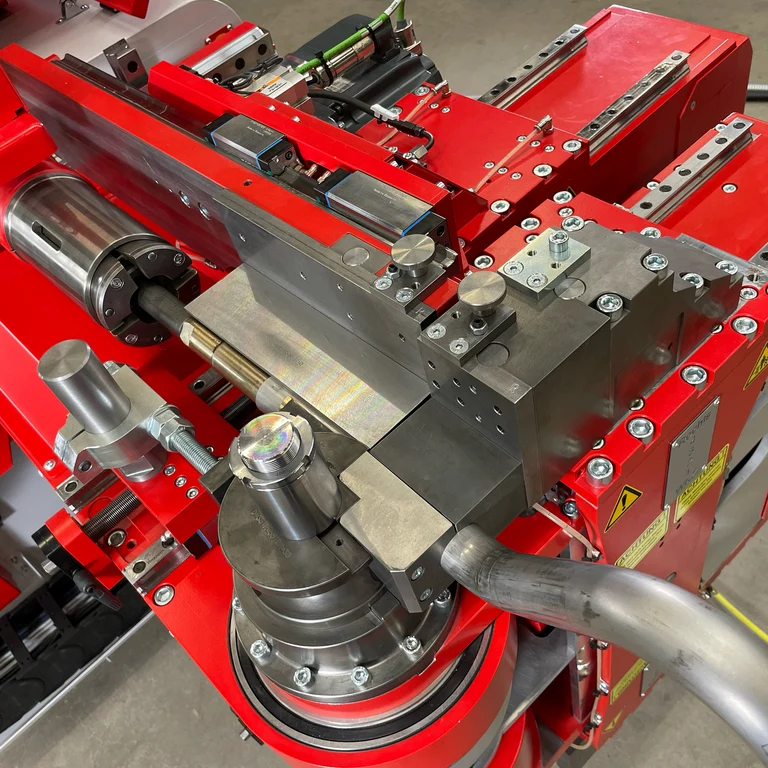

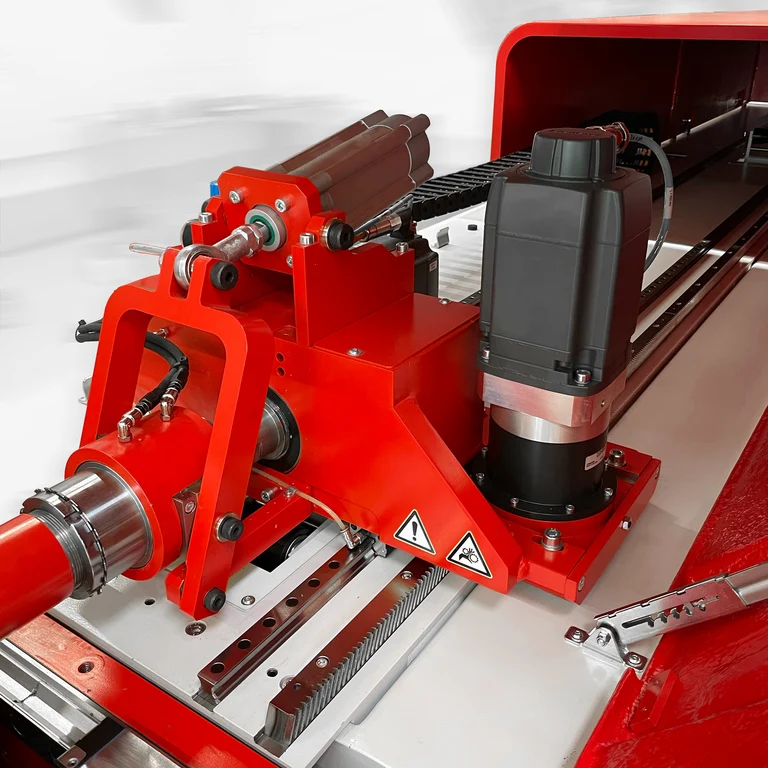

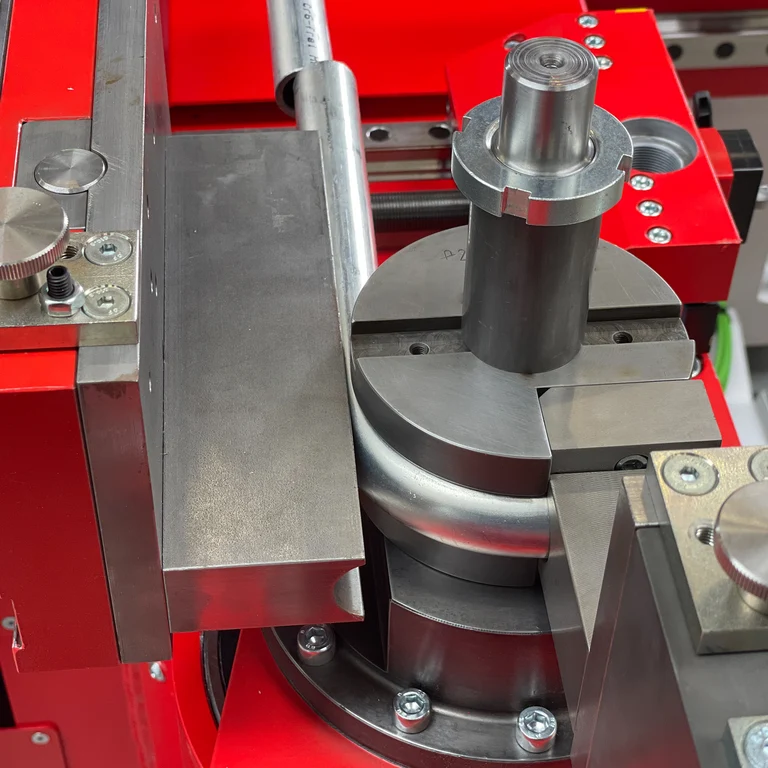

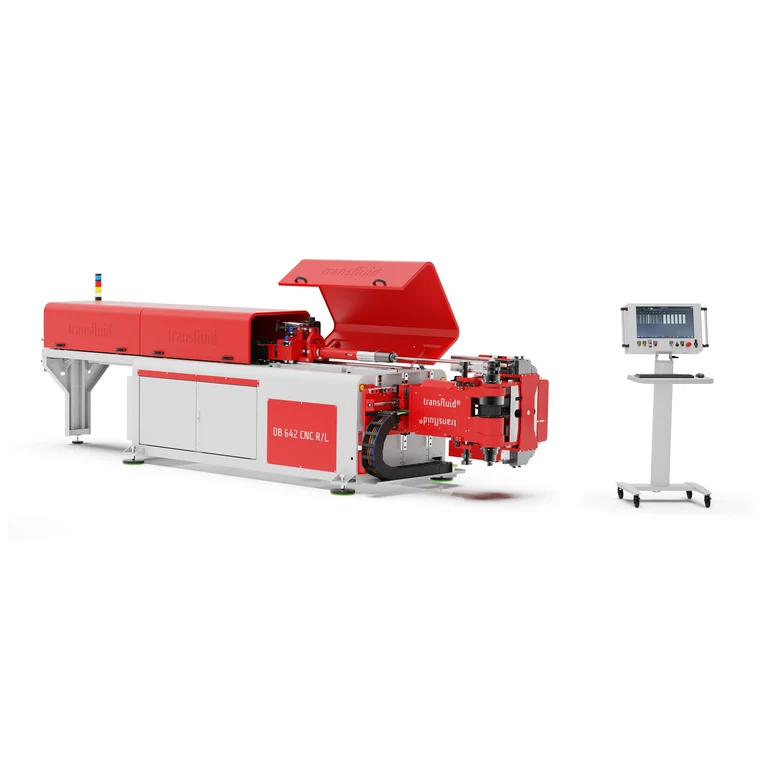

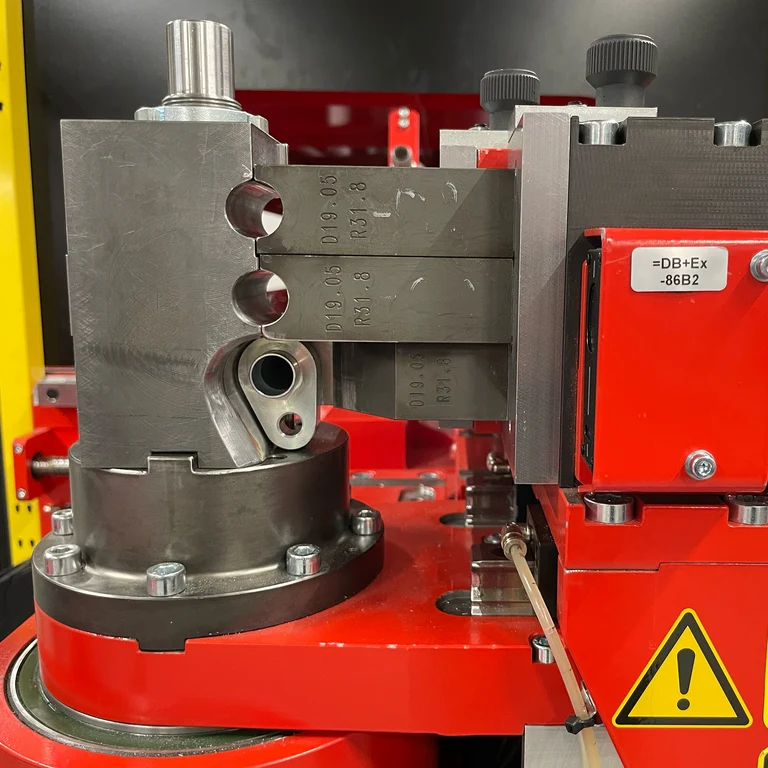

Type: DB 642-CNC-R/L
file Download technical data
Range 1/4" - 2 3/4"
Max. capacity 2 3/4" x .154" (mild steel) 2 3/8" x .095" (stainless steel)
Max. Radii 7.1"
Usable length 10 ft (standard), 15 ft,  20 ft (special)
Speed of bending axis 100 °/sec.
Range 3/16" - 7/8"
Max. capacity 7/8" x .72" (mild steel) 7/8" x .049" (stainless steel)
Max. Radii 2.6"
Usable length 6.5 ft (standard) 10 ft 15 ft 20 ft (special)
Speed of bending axis 300 °/sec.
Range 3/16" - 1 1/8"
Max. capacity 1 1/8" x .72" (mild steel)
1 1/8" x .049" (stainless steel)
Max. Radii 3.5"
Usable length 6.5 ft (standard)
10 ft
15 ft
20 ft (special)
Speed of bending axis 275 °/sec.
Range 1/4" - 1 5/8"
Max. capacity 1 5/8" x .120" (mild steel) 1 5/8" x .120" (stainless steel)
Max. Radii 6.6"
Usable length 6.5 ft 10 ft (standard) 15 ftmm 20 ft (special)
Speed of bending axis 180 °/sec.
