t bend - Mandrel Bending Machines
with servo-electric motors for better efficiency.
High tech bending freedom without any limitations- Industry 4.0 / t project
- Accurate, great performance and fast
- Durable, also in multi-shift operations
Explore our machine virtually
Move the slider and click the info points for more information.
The right machine for your task
Product video
Experience in 3D

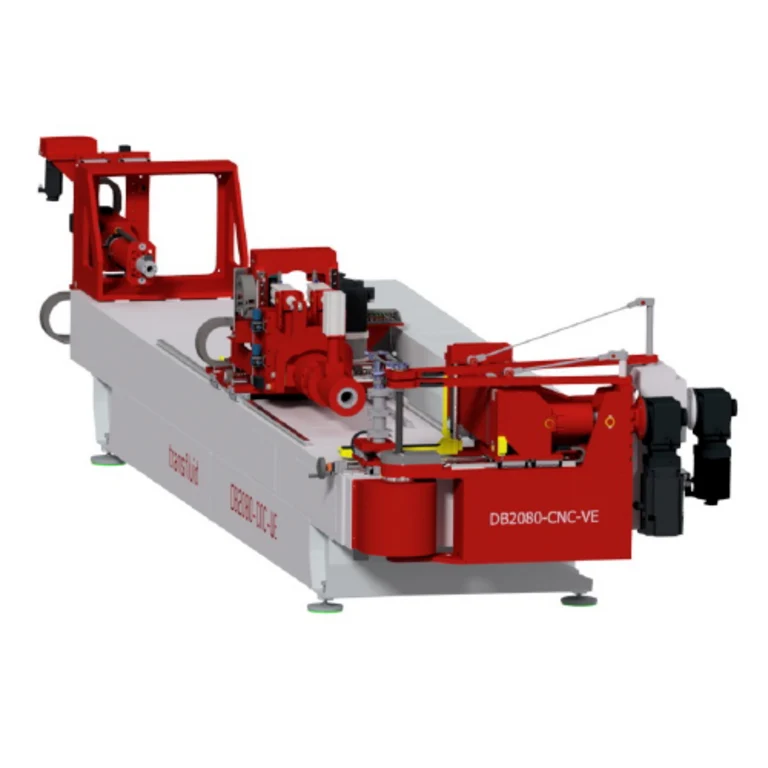

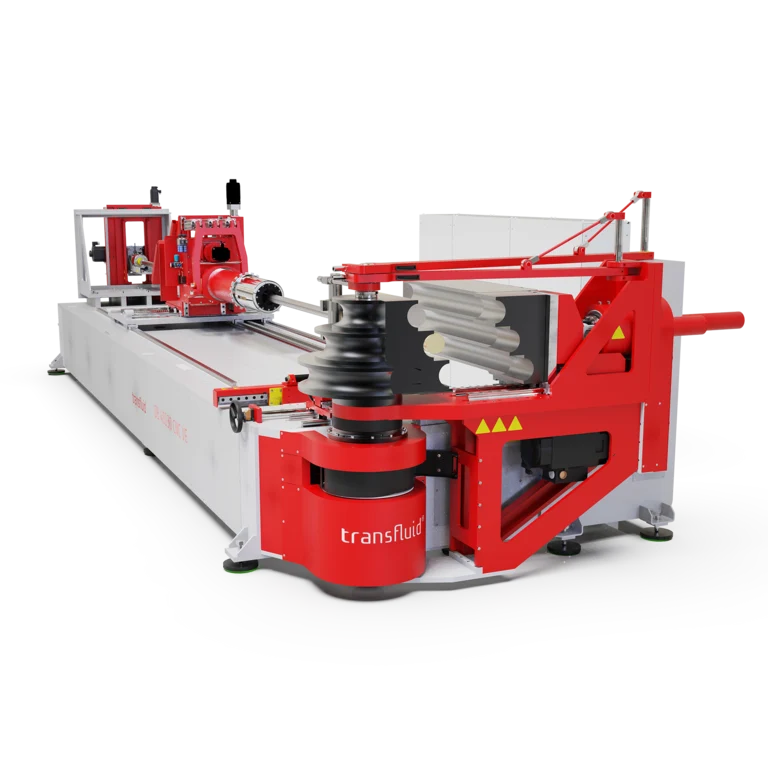

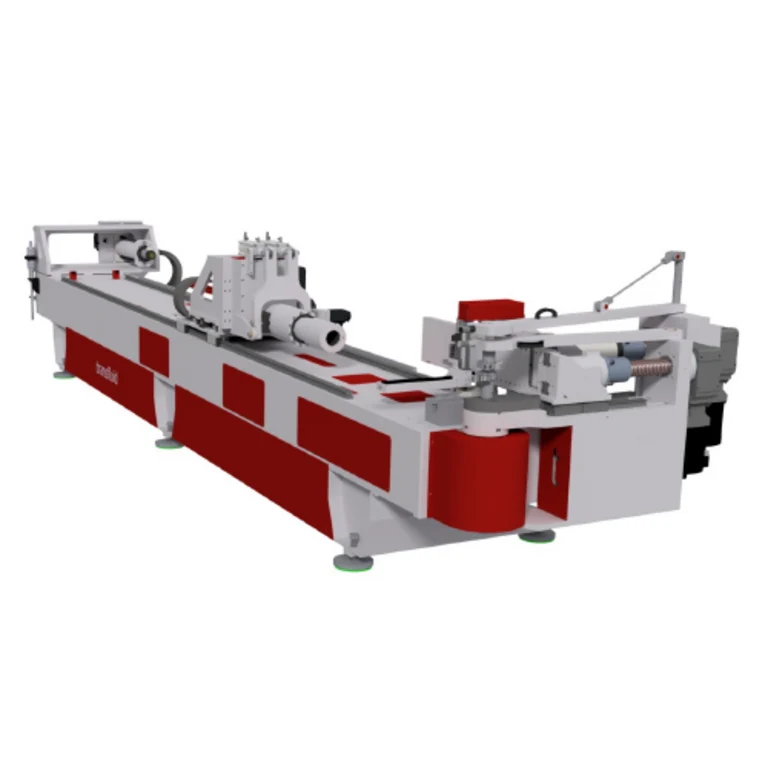

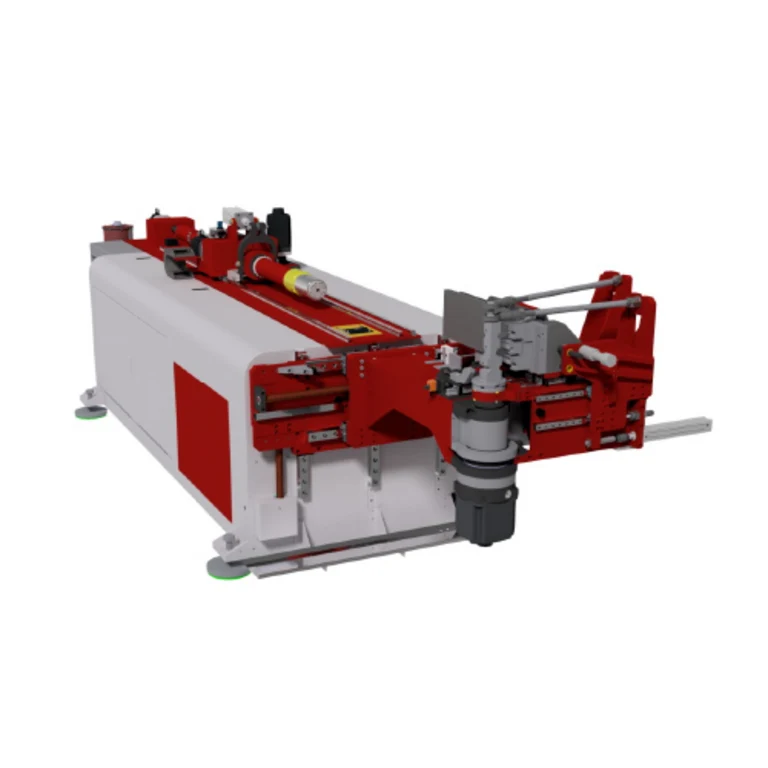

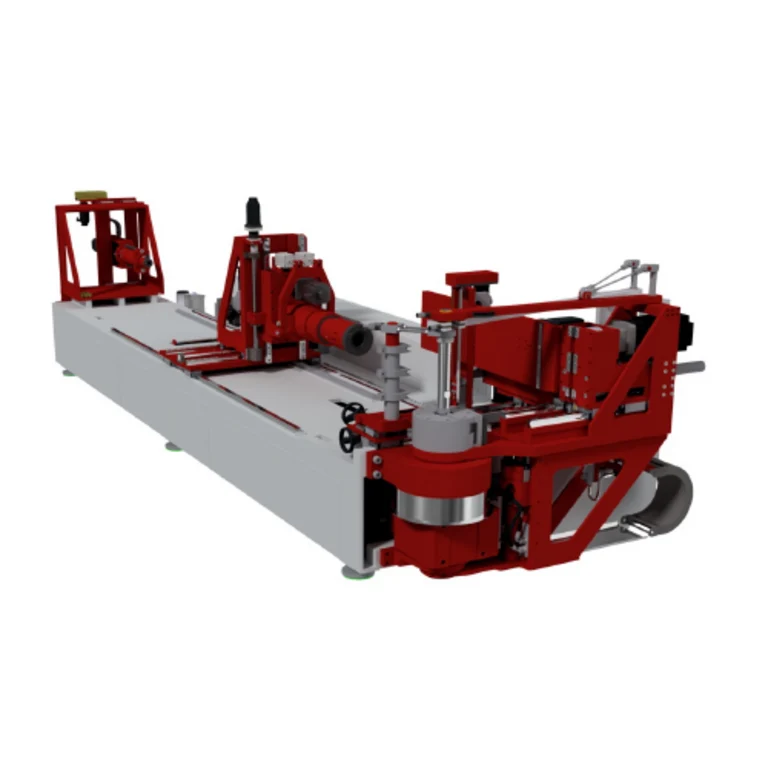

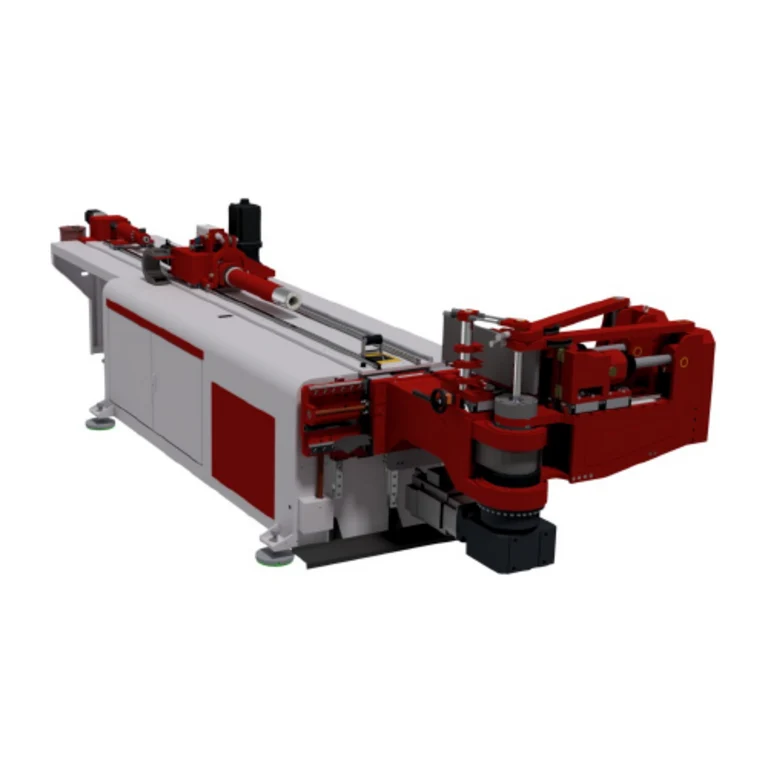

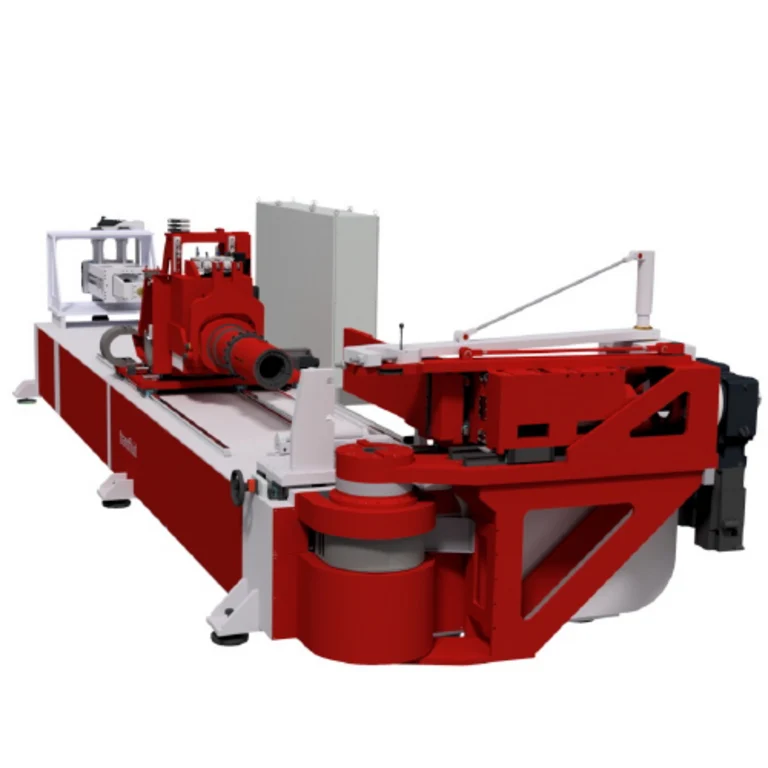

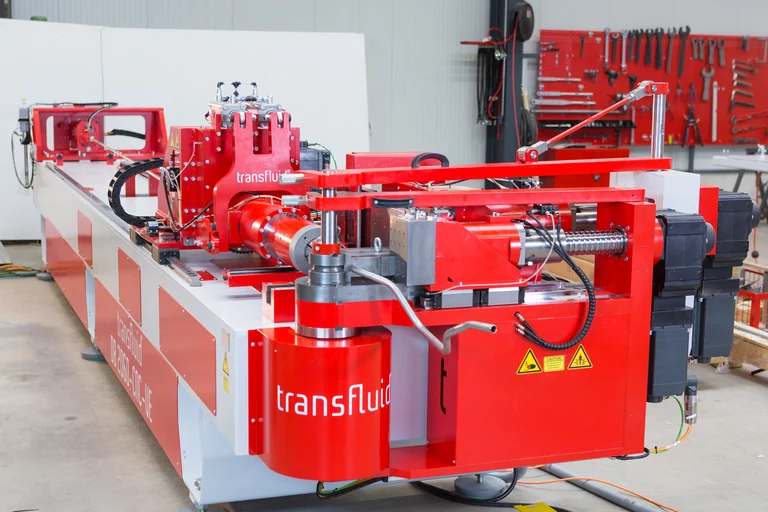

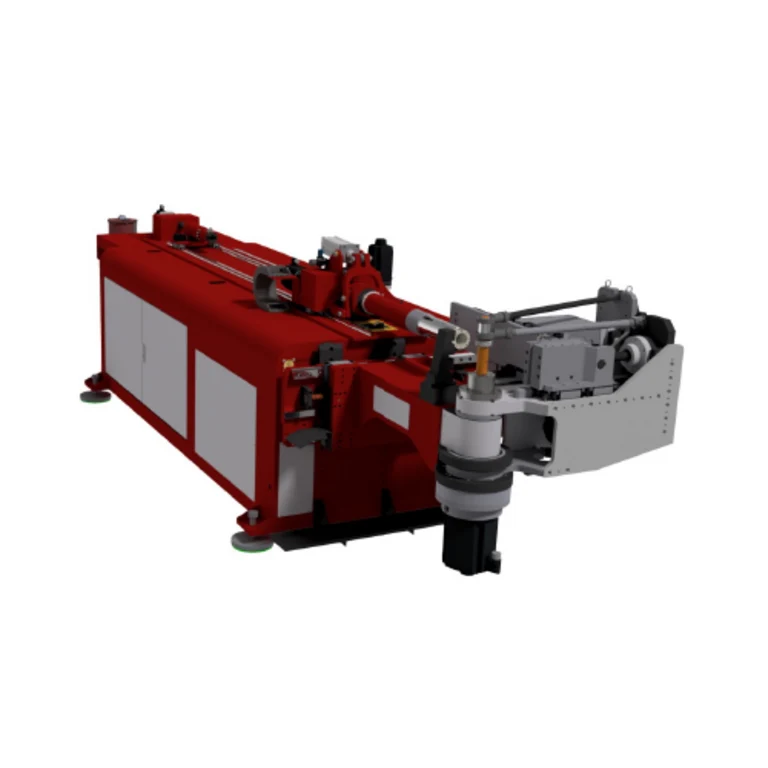

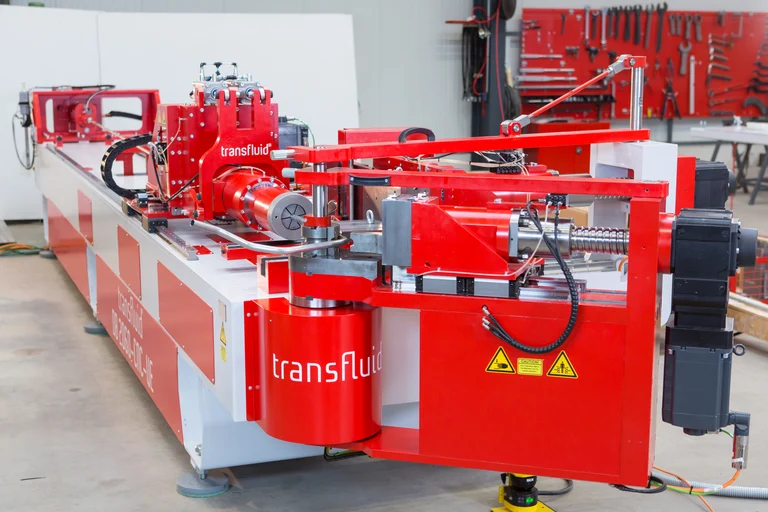

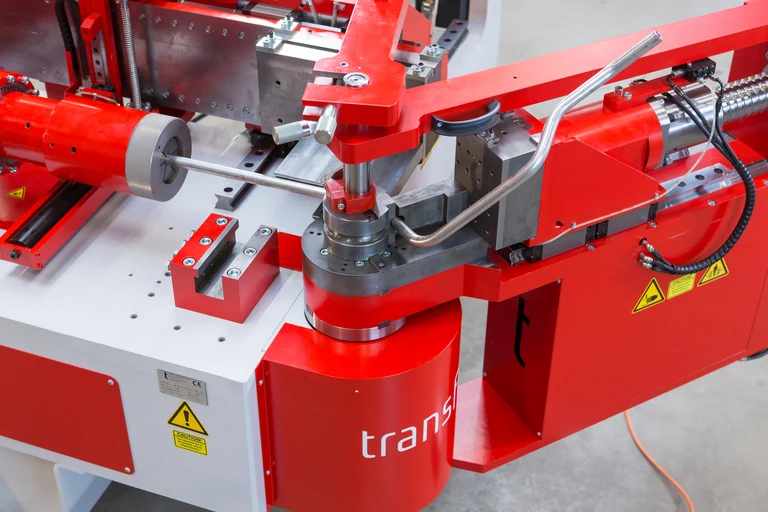

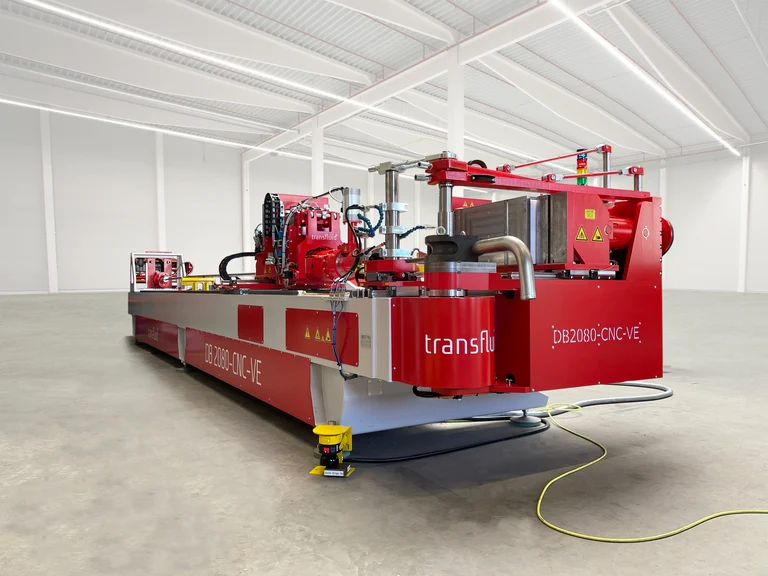

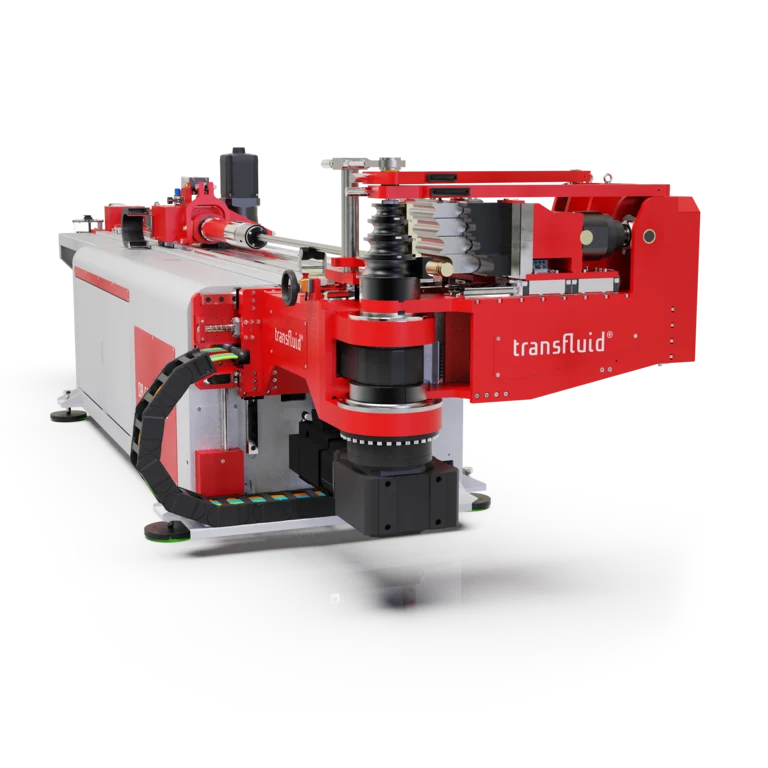

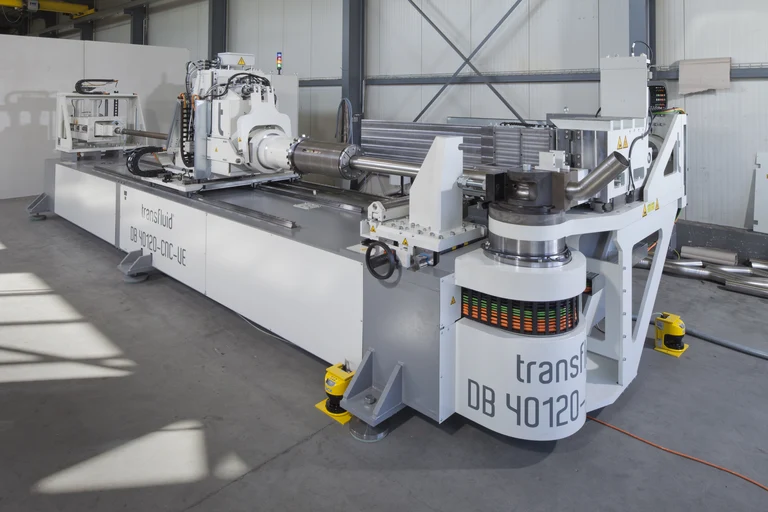

MANDREL BENDING MACHINES Full electric with CNC-Control
| Range | 3/16" - 7/8" |
| Max. capacity | 7/8" x .72" (mild steel) 7/8" x .049" (stainless steel) 5/8" x .049" (square mild steel) |
| Max. Radii | 2 5/8" |
| Usable length | 6.5 ft (standard) 10 ft 15 ft 20ft (special) |
| Speed of bending axis | 300 °/sec. |
| Range | 3/16" - 1 1/16" |
| Max. capacity | 1 1/16" x .72" (mild steel) 1 1/16" x .049" (stainless steel) 3/4" x .1" (square mild steel) |
| Max. Radii | 3.5" |
| Usable length | 6.5 ft (standard) 10 ft 15 ft 20 ft (special) |
| Speed of bending axis | 275 °/sec. |
| Range | 1/4" - 1 5/8" |
| Max. capacity | 1 5/8" x .120" (mild steel) 1 5/8" x .049" (stainless steel) 1" x .1" (square mild steel) |
| Max. Radii | 6.6" |
| Usable length | 6.5 ft 10 ft (standard) 15 ft 20 ft (special) |
| Speed of bending axis | 180 °/sec. |
| Range | 1/4" - 2" |
| Max. capacity | 2" x .120" (mild steel) 2" x .072" (stainless steel) 1 3/8" x .157" (square mild steel) |
| Max. Radii | 6" |
| Usable length | 6.5 ft 10 ft (standard) 15 ft 20 ft (special) |
| Speed of bending axis | 180 °/sec. |
| Range | 1/4" - 2 1/2" |
| Max. capacity | 2 1/2" x .072" (mild steel) 2 1/2" x .049" (stainless steel) 1 3/8" x .157" (square mild steel) |
| Max. Radii | 6" |
| Usable length | 6.5 ft 10 ft (standard) 15 ft 20 ft (special) |
| Speed of bending axis | 180 °/sec. |
| Range | 1/4" - 3 1/16" |
| Max. capacity | 3 1/16" x .120" (mild steel) 3 1/16" x .072" (stainless steel) 2 1/8" x .157" (square mild steel) |
| Max. Radii | 9.4" |
| Usable length | 10 ft (standard) 15 ftmm 20 ft (special) |
| Speed of bending axis | 100 °/sec. |
| Range | 3/4" - 4" |
| Max. capacity | 4" x .120" (mild steel) 4" x .120" (stainless steel) 2.75" x .157" (square mild steel) |
| Max. Radii | 12" |
| Usable length | 10 ft (standard) 15 ft 20 ft (special) |
| Speed of bending axis | 80 °/sec. |
| Range | 3/4" - 5" |
| Max. capacity | 5" x .120" (mild steel) 5" x .095" (stainless steel) 3.5" x .196" (square mild steel) |
| Max. Radii | 15.4" |
| Usable length | 15 ft 20 ft (special) |
| Speed of bending axis | 65 °/sec. |
| Range | 3/4" - 6" |
| Max. capacity | 6" x .120" (mild steel) 6" x .095" (stainless steel) 3.5" x .196" (square mild steel) |
| Max. Radii | 17.7" |
| Usable length | 15 ft (standard) 20 ft (special) |
| Speed of bending axis | 65 °/sec. |
Your benefits at a glance
-

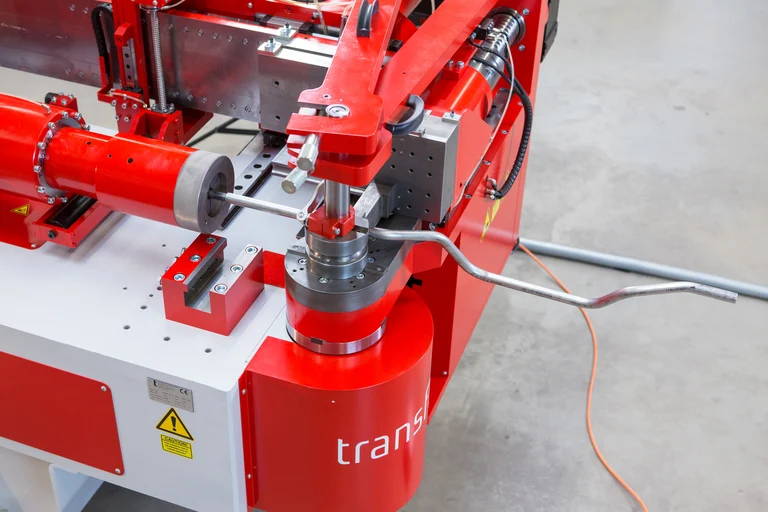

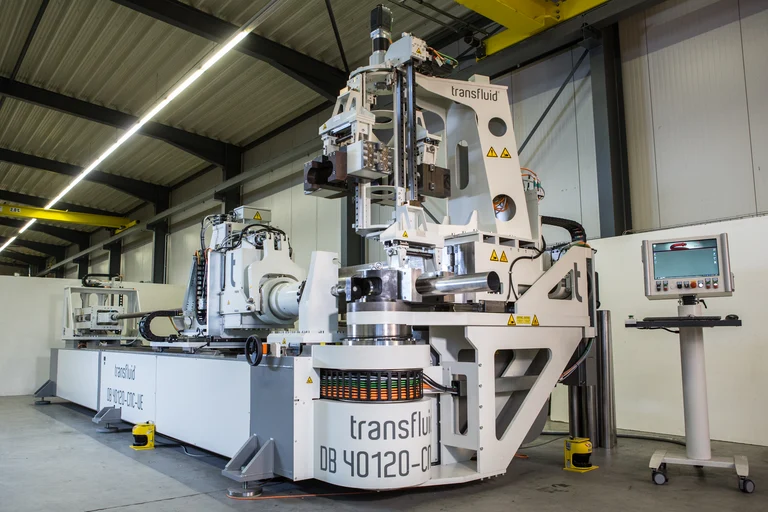

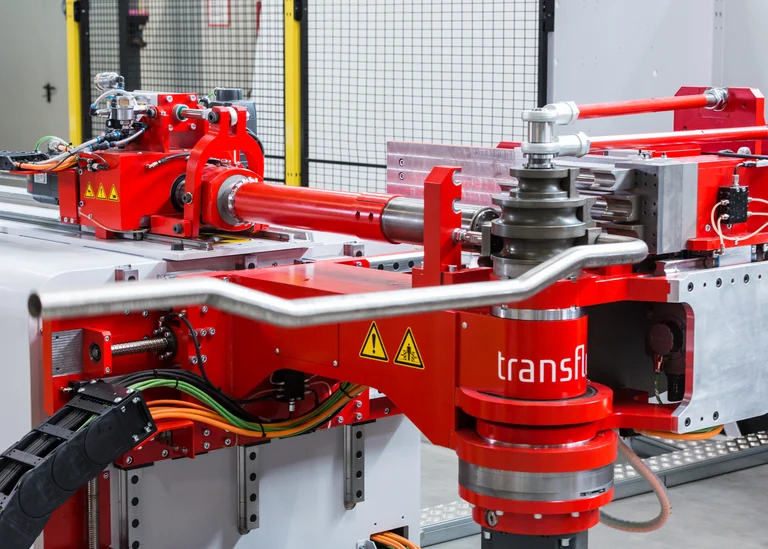

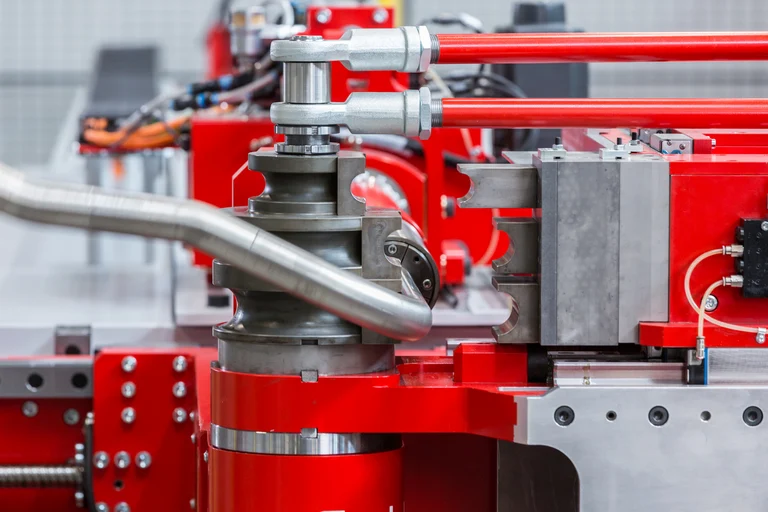

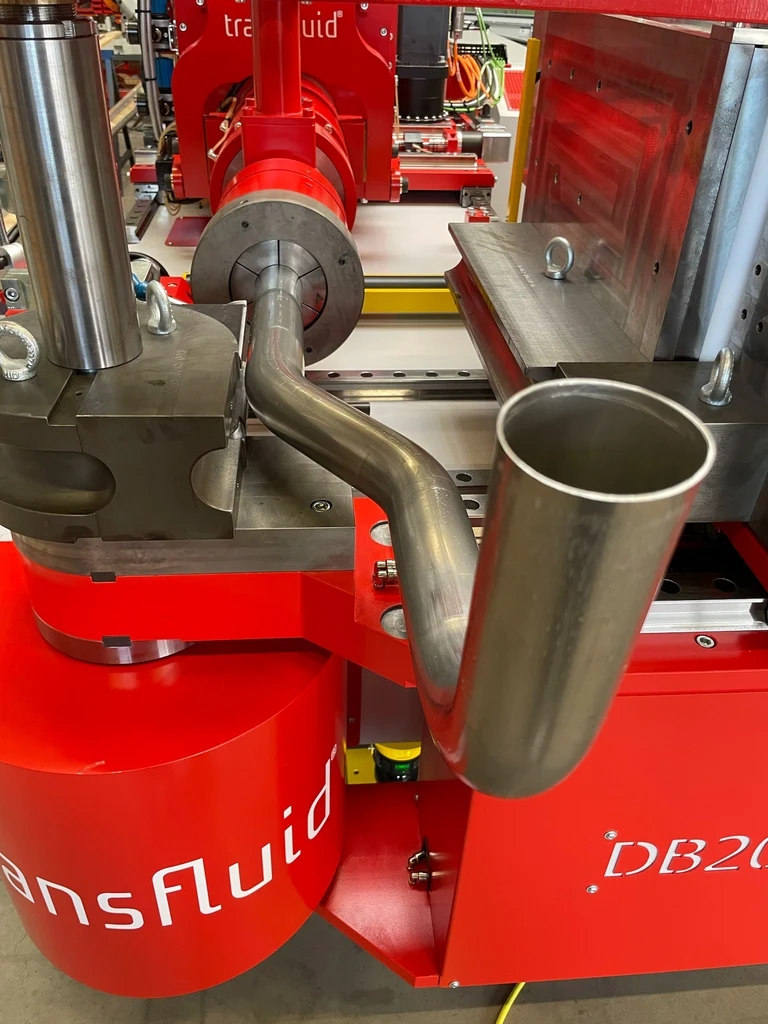

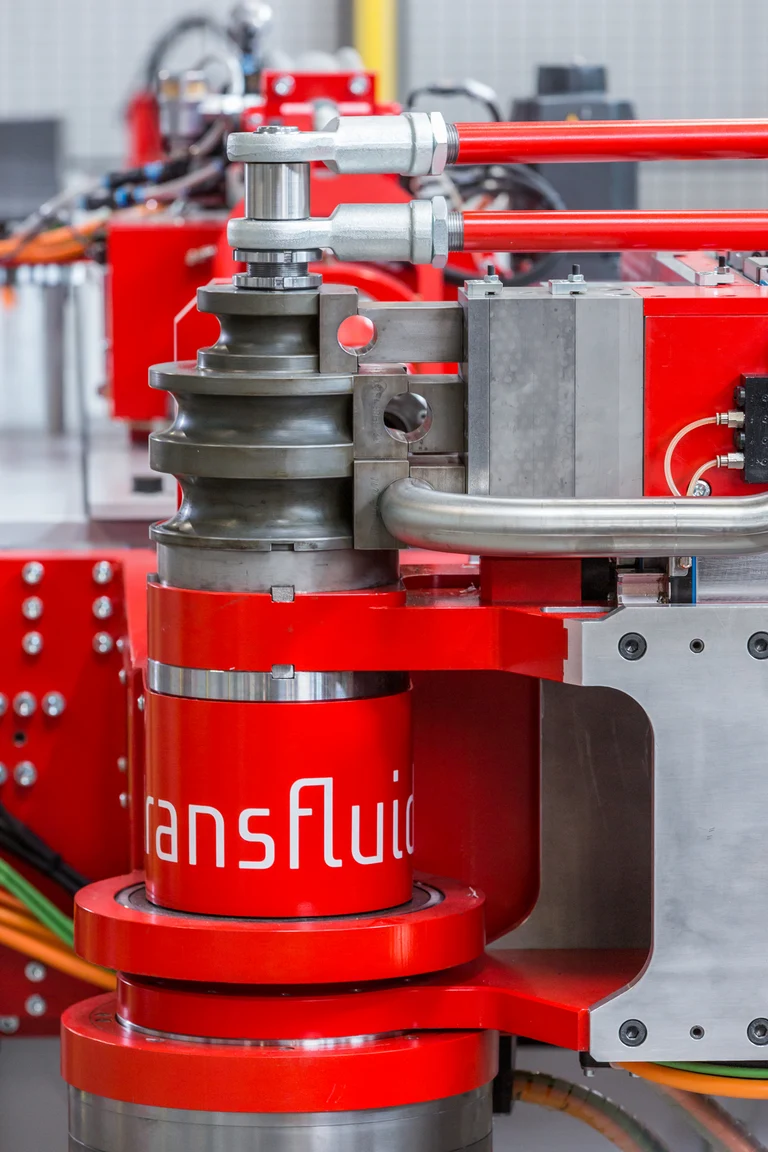

MULTILEVEL BENDING

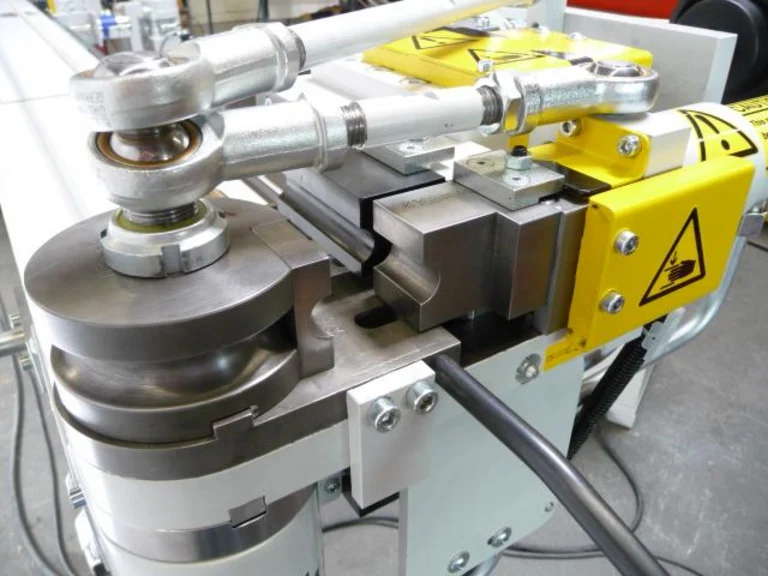

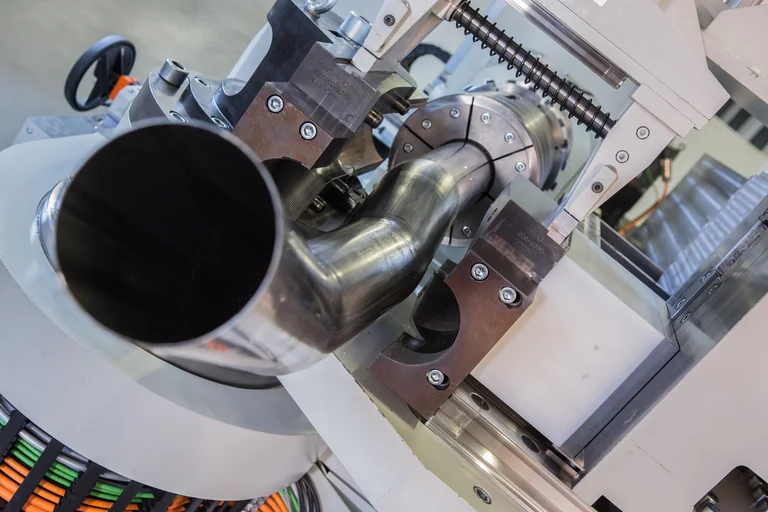

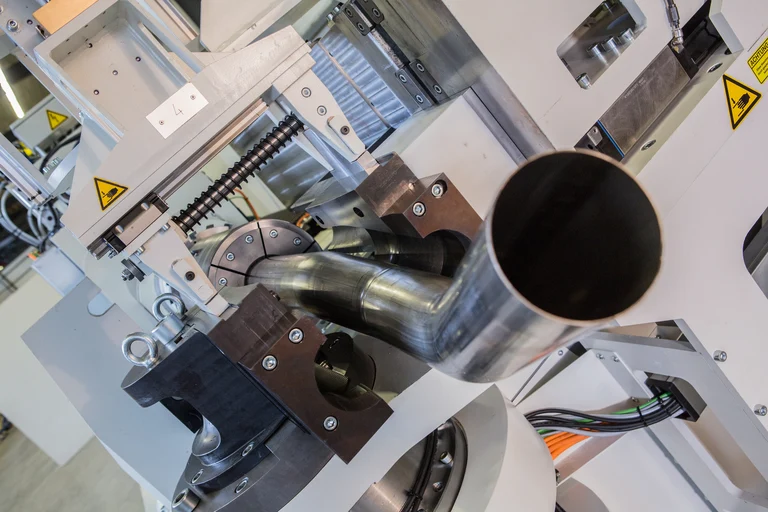

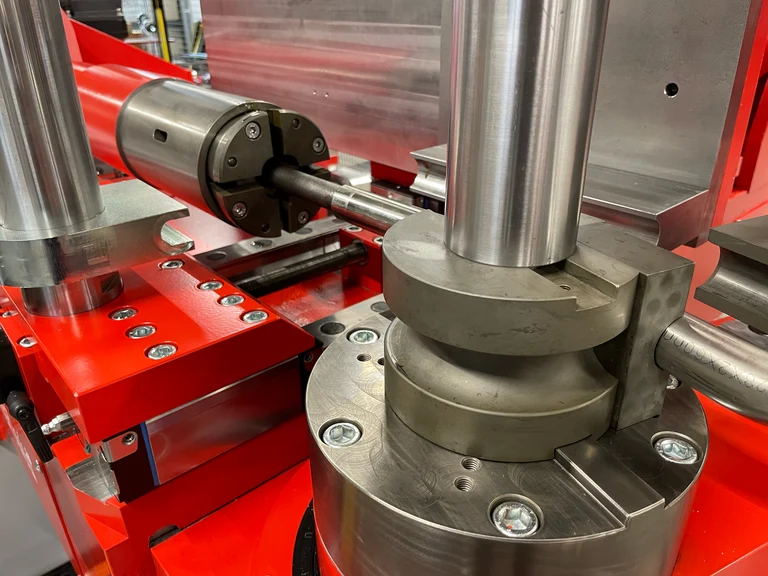

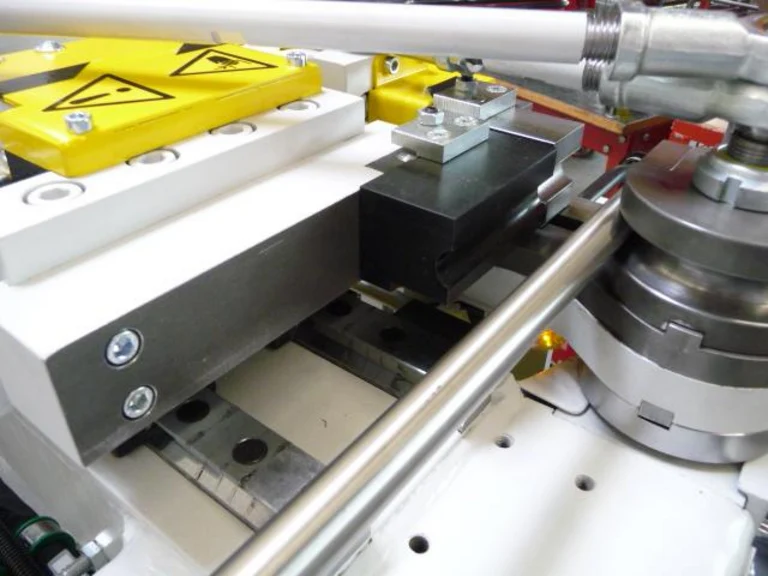

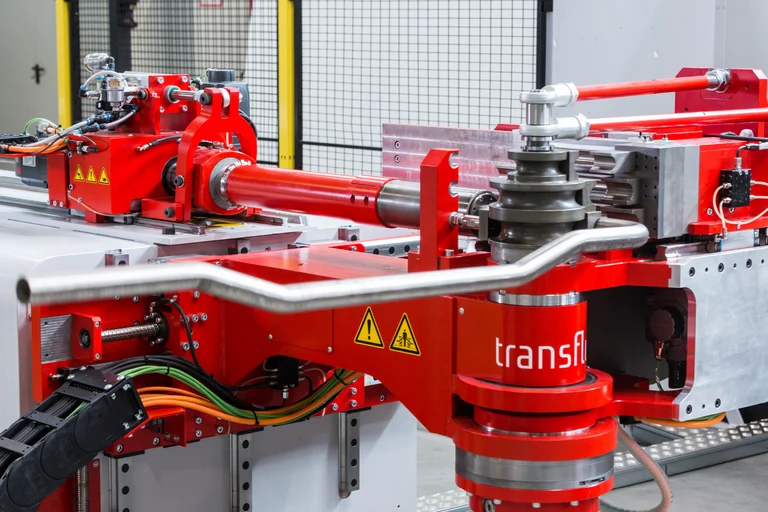

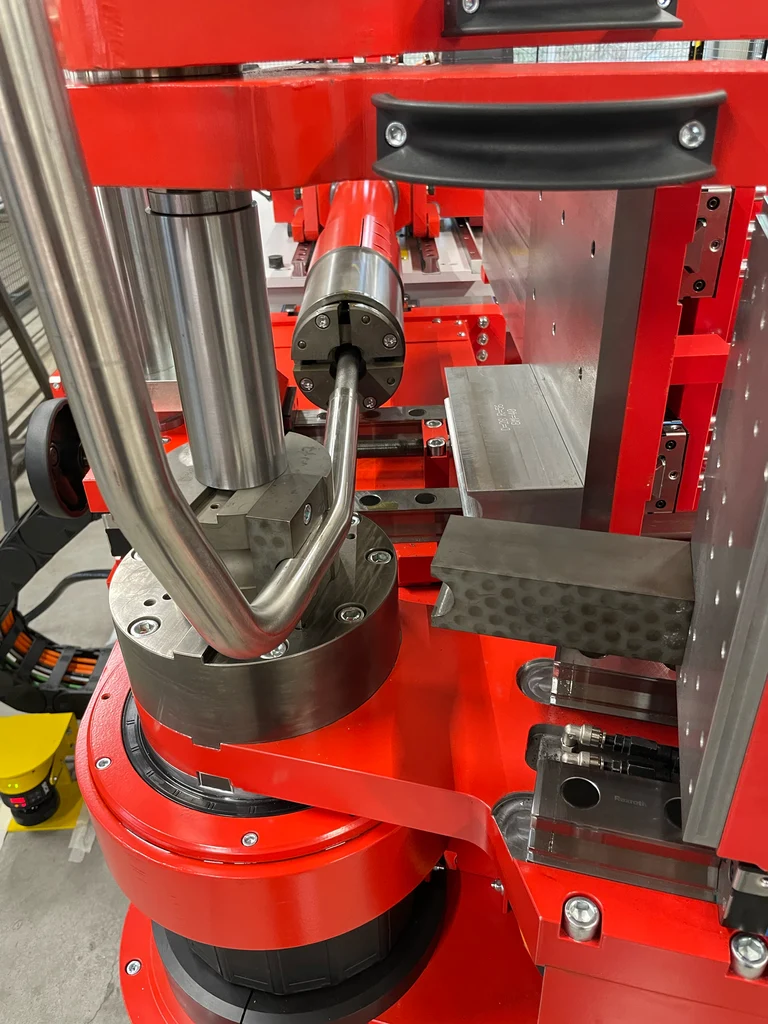

Each bending head can be equipped with minimum two tool sets, e.g. with different bending radii or form-clamps, max. changing height for standard machine is 60 mm.

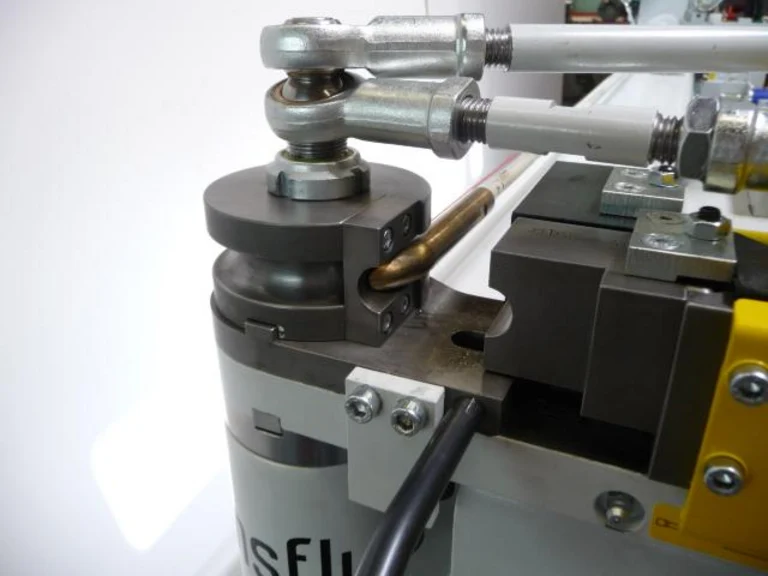

Bending tools for tubes with already formed tube ends.
-

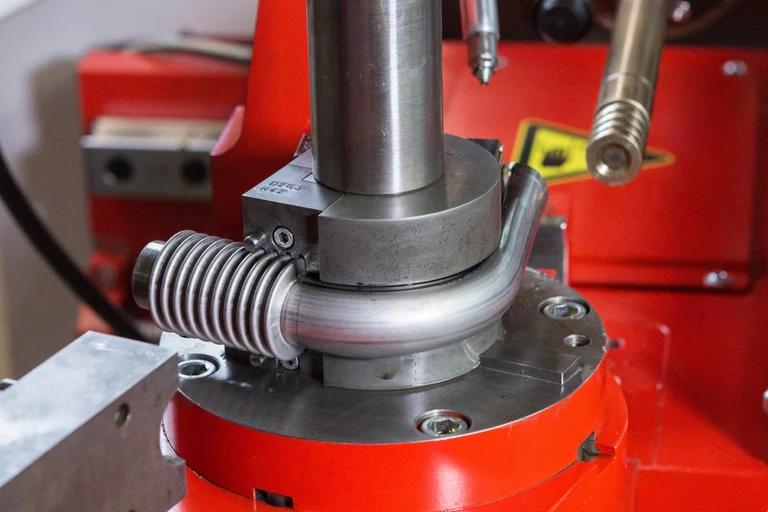

CUSTOM BENDING TOOLS
Bending tools for tubes with already formed tube ends
-
SOLID MATERIAL

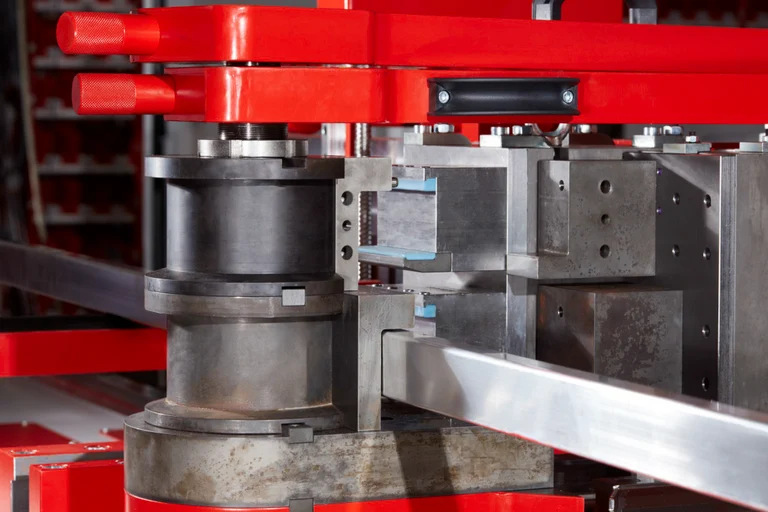

Adaptation of the bending machine for bending busbars/ conductor rails/ flat conductors.
-

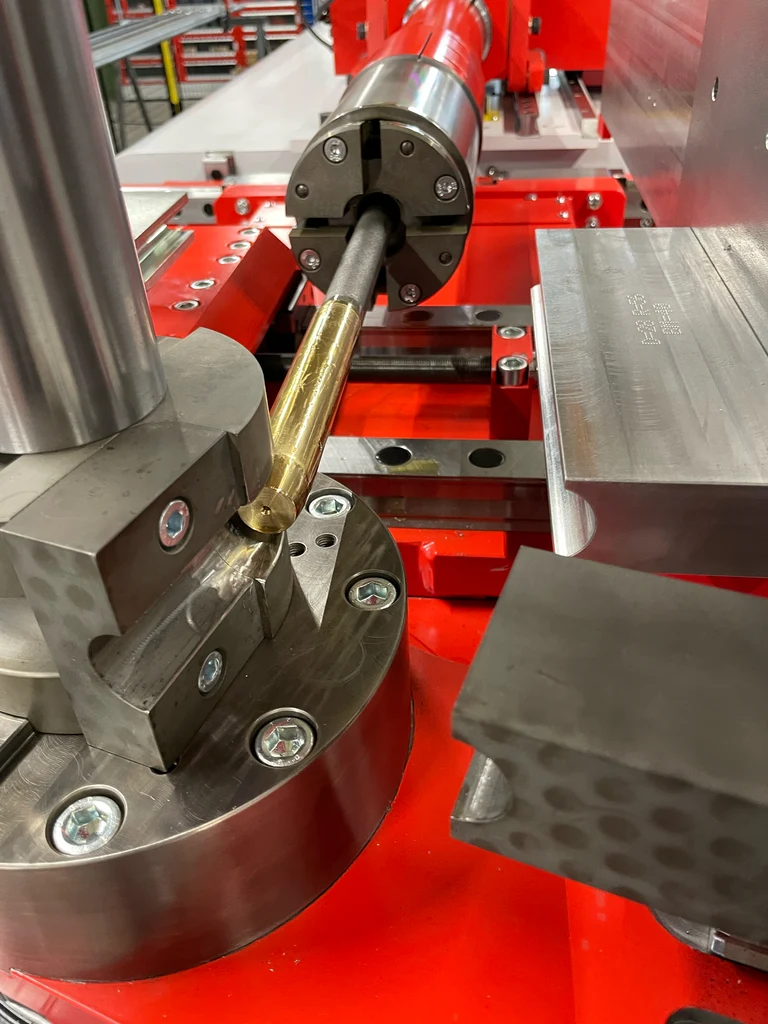

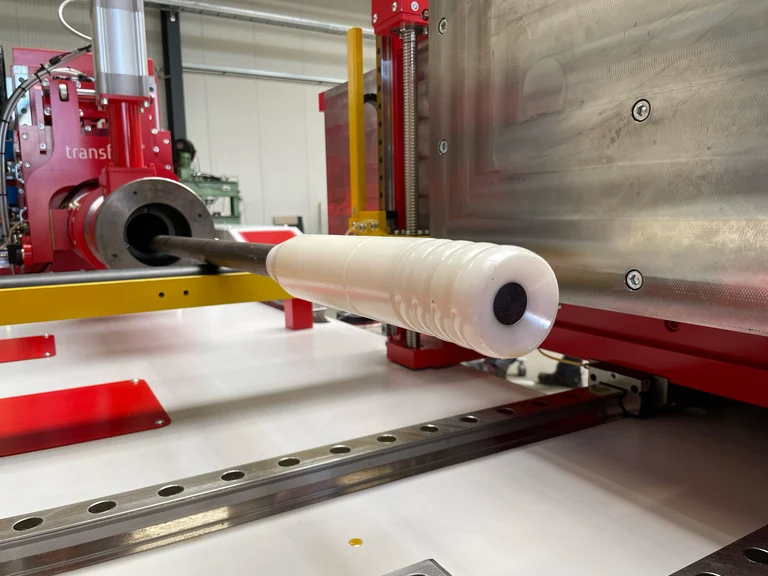

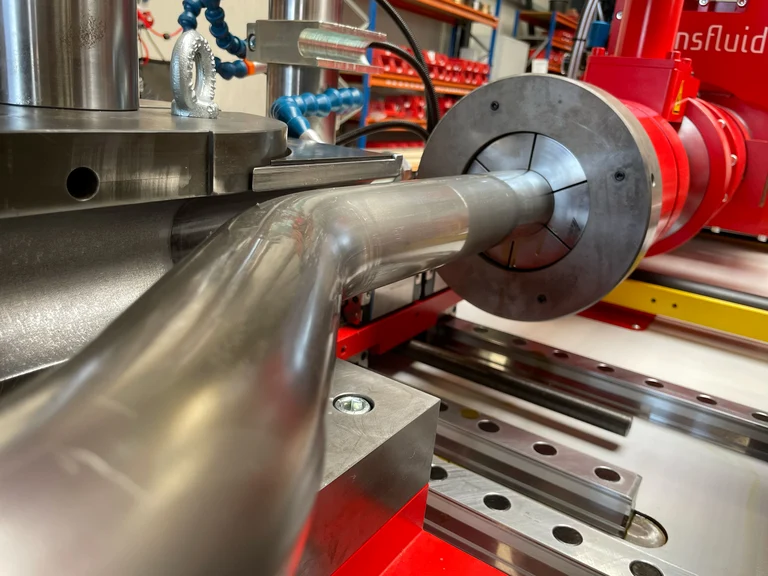

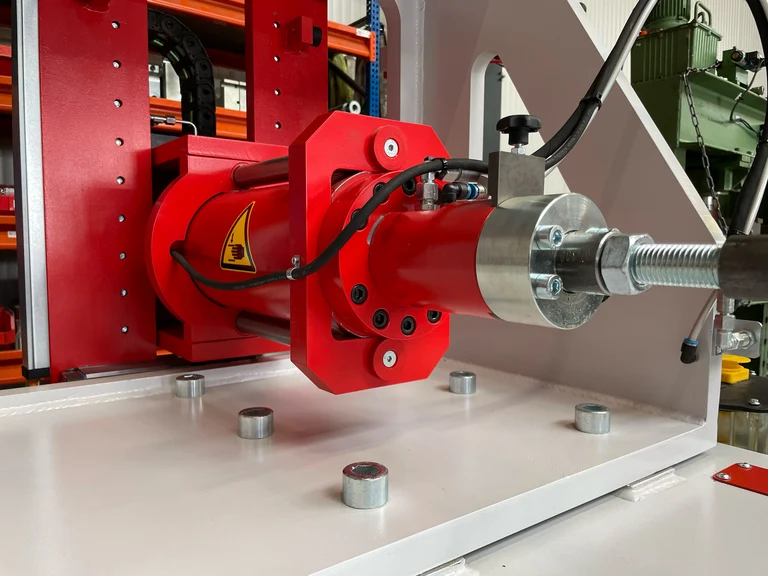

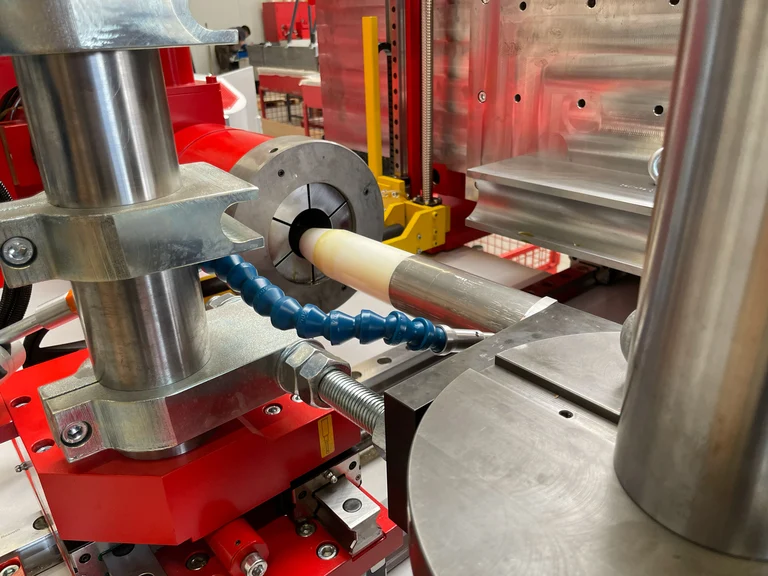

BENDING MANDRELS

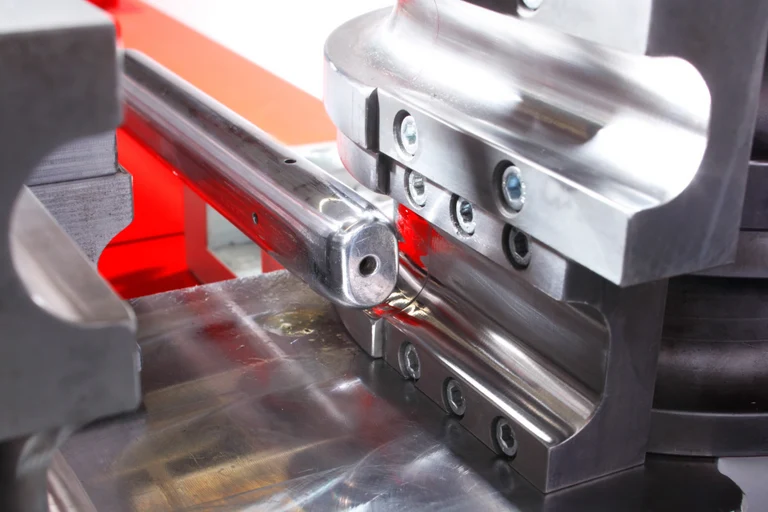

Bending mandrels in different contours or materials.
-

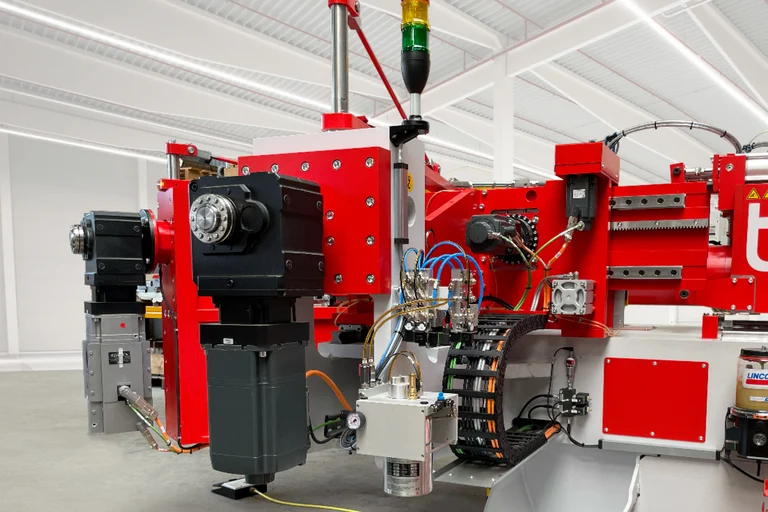

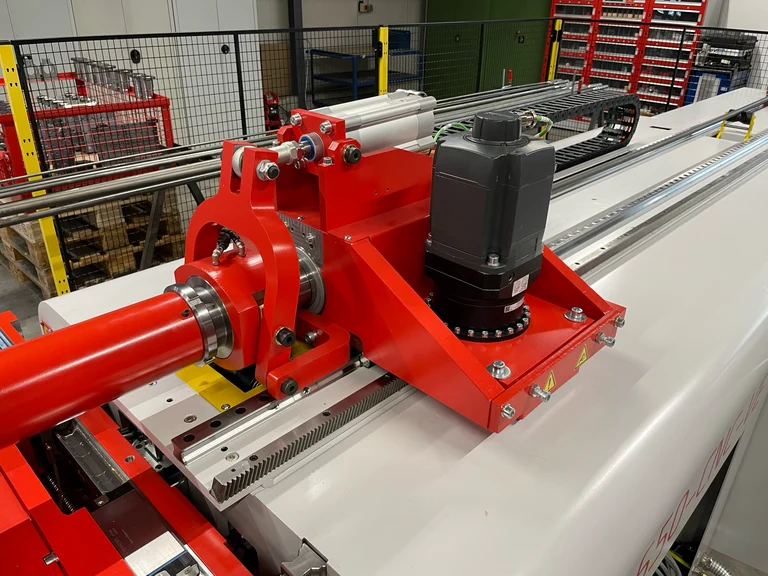

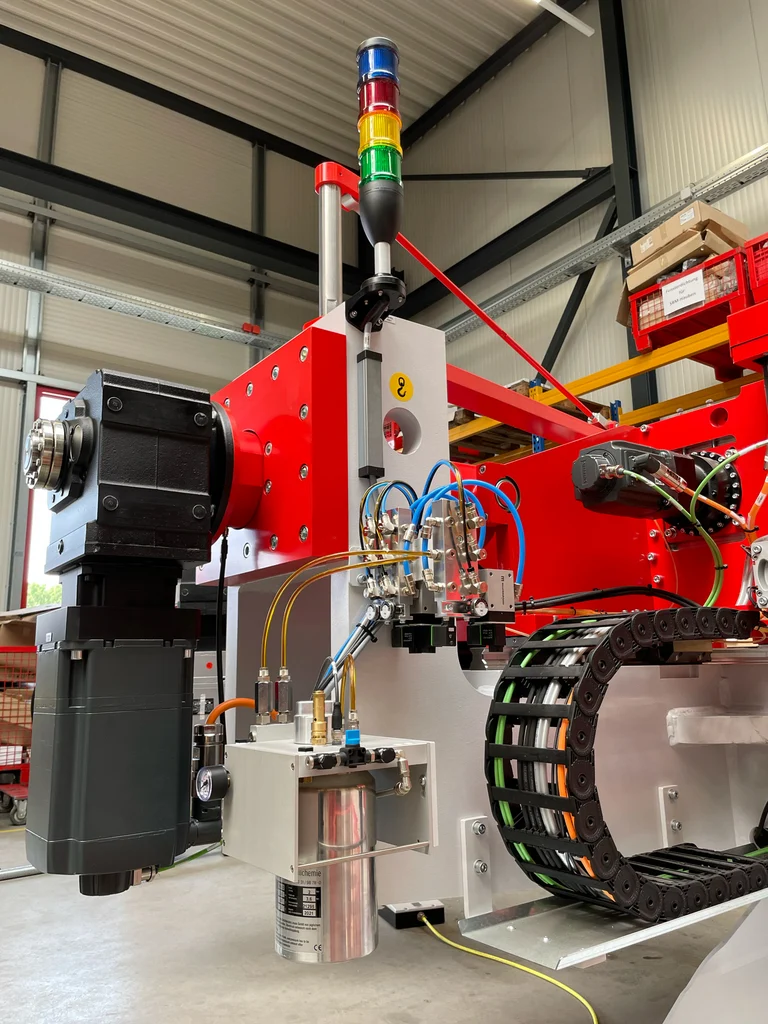

FULLY ELECTRIC
100% electric drive of all 11 axes. Compared to hydraulic machines, energy savings of up to 50% can be achieved.
-

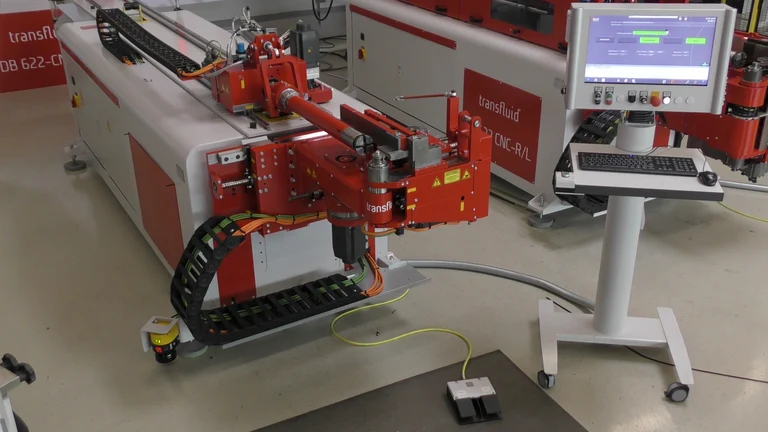

CONTROL UNIT

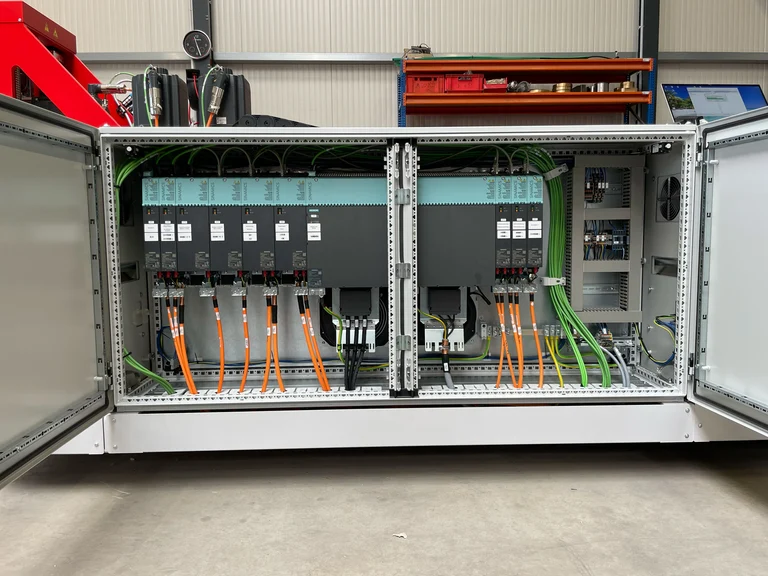

The control unit is equipped with high-quality electronic components from leading suppliers. This ensures a long service life and a reliable supply of spare parts over a long period of time.
-

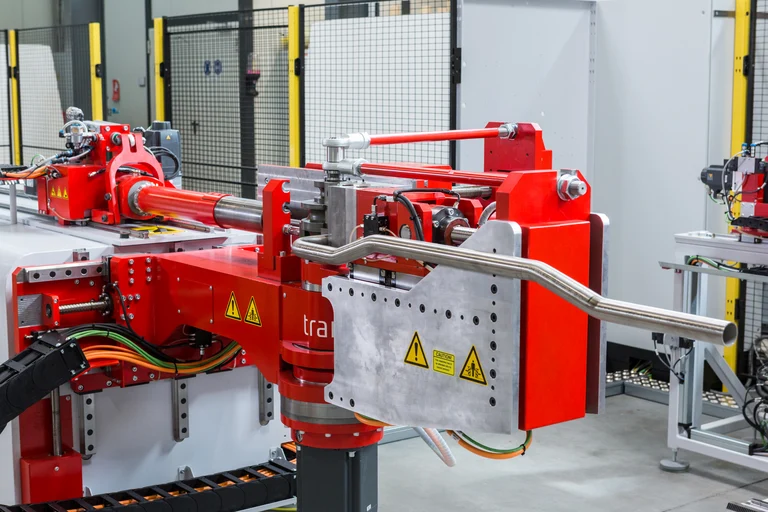

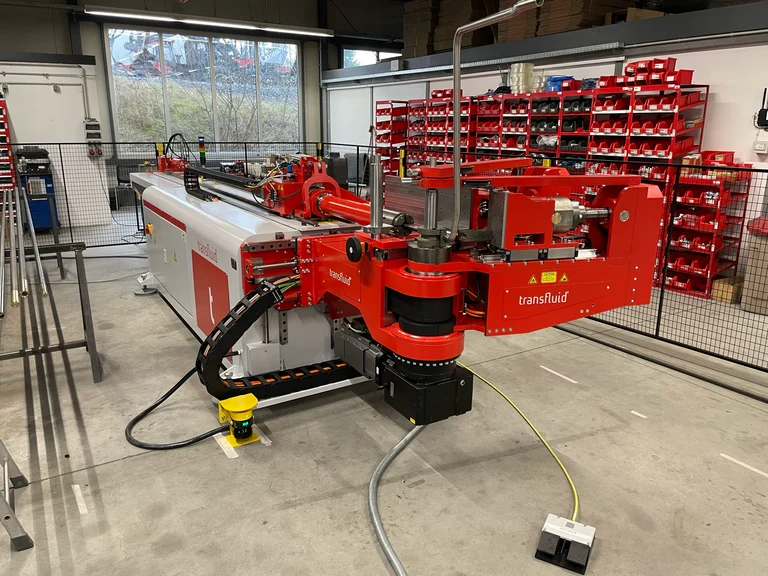

PUSH BENDING

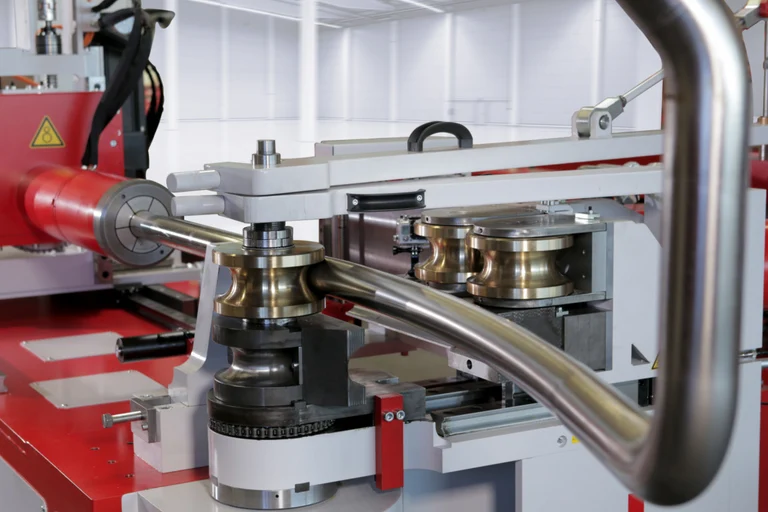

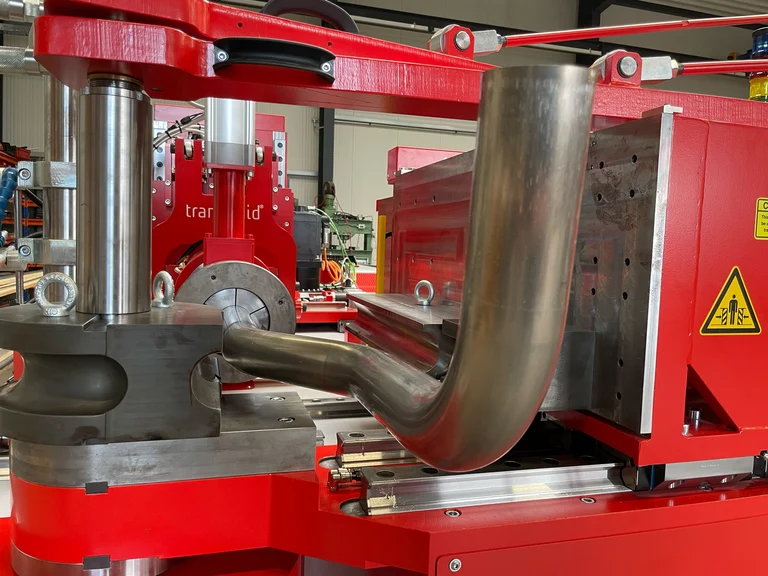

Boost and Multi-Stack option to allow maximum flexibility on part production. The machine is capable to do multi radius parts, push bending and tight radius below 1xD. This versatility sets the machine for any industry challenges.
-

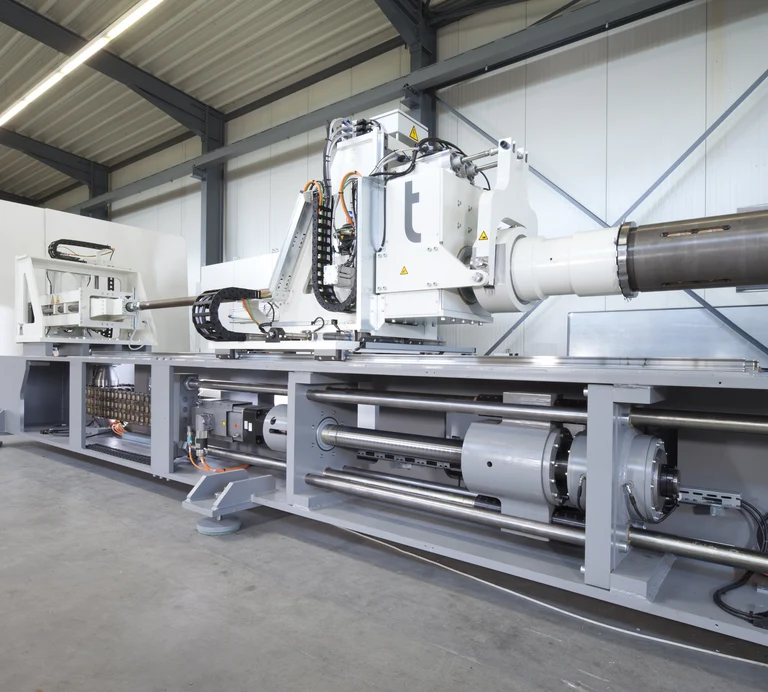

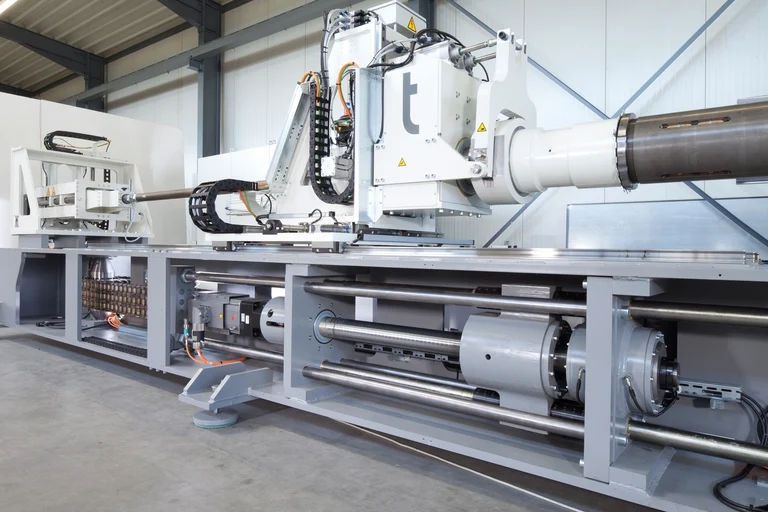

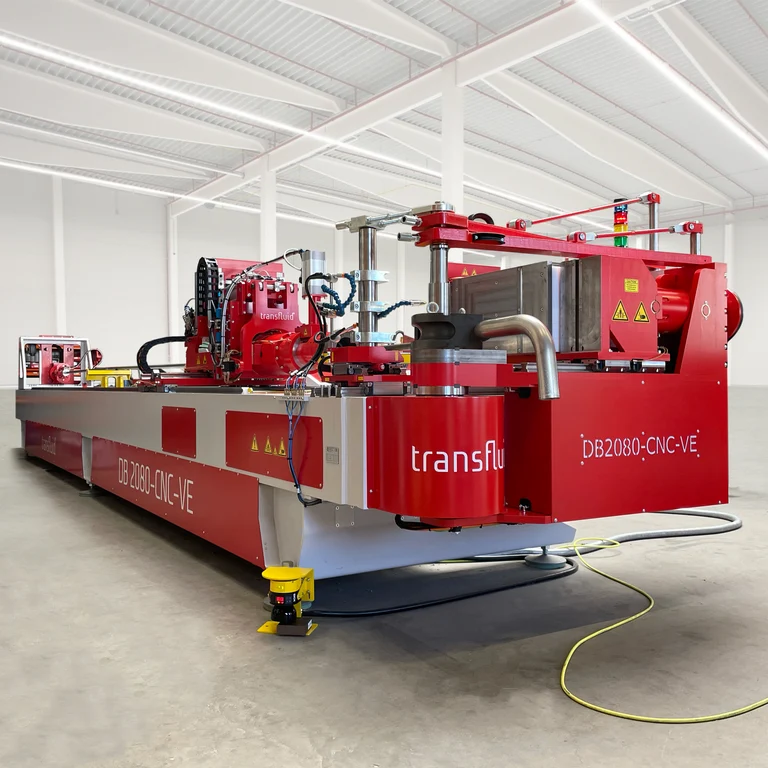

Solid welded construction
This series will win you over with its special stability, performance very durable machine design.

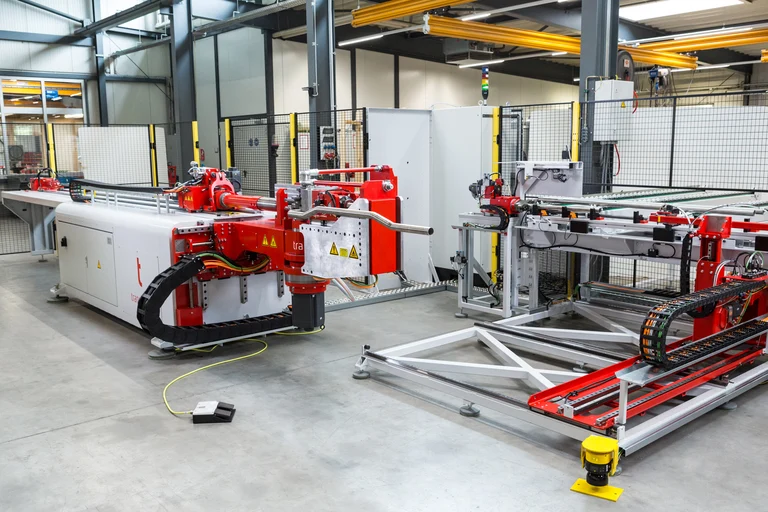

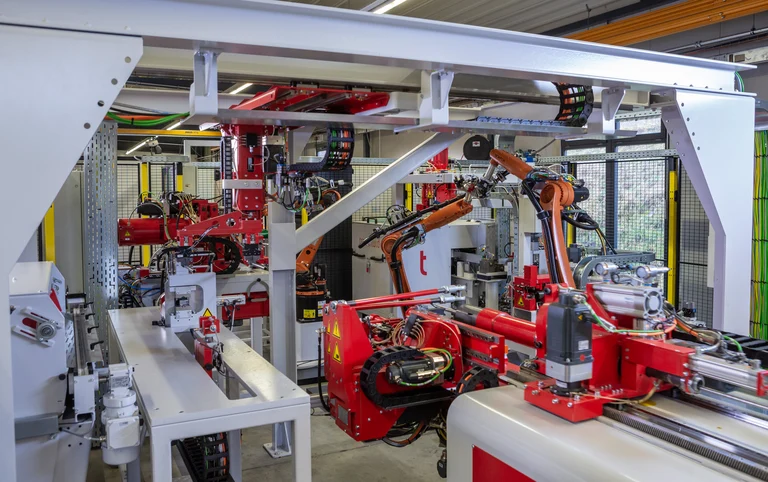

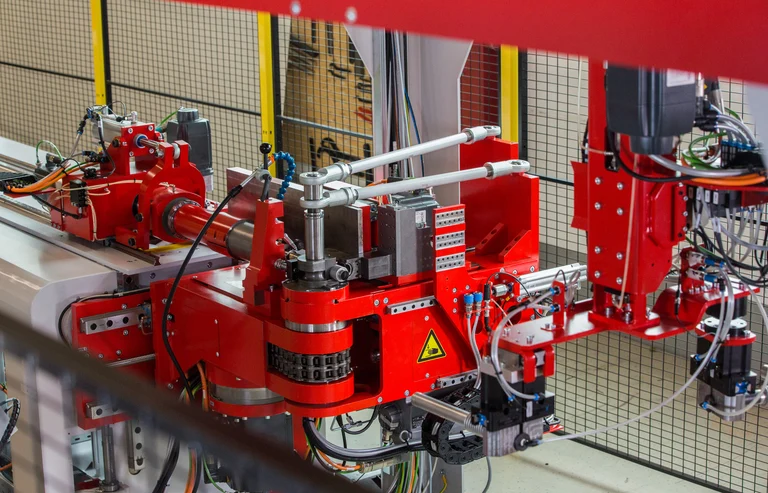

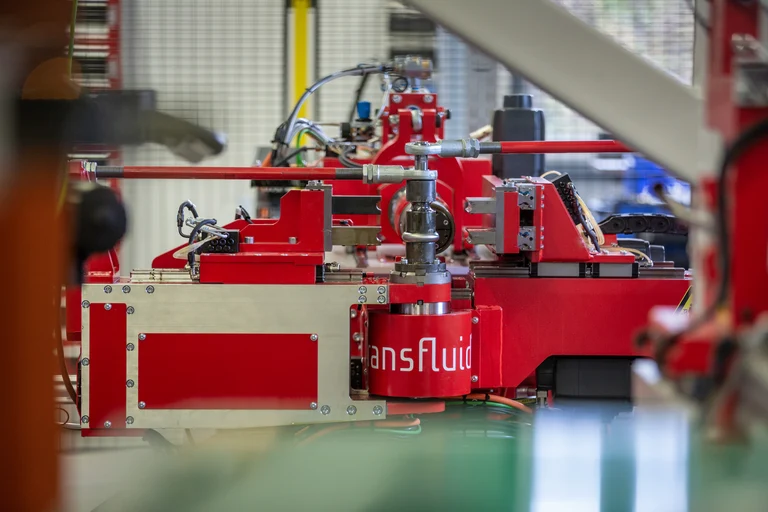

COST-EFFECTIVE MATERIAL LOADING

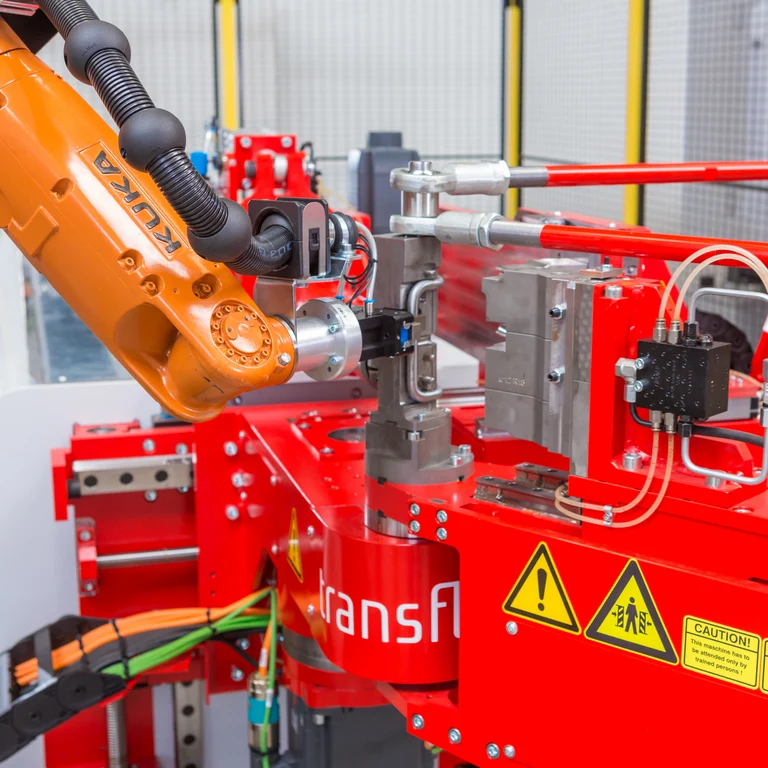

We offer a great variety of loading systems for all the machines, dependent on the material, tube diameter and tube length. Tubes that have already been formed and with added components can also be loaded without any issues. The appropriate orientation is therefore very important, when loading the tube into the production cell. External workpieces, such as nuts, flanges, supporting sleeves can be added to the system in a controlled manner and included in any subsequent processing steps. A great variety of loading volumes is possible.
Powerful Software
Go directly from CAD to the tube bender with t-project tube bending software and upload functions. The virtual bending simulation determines exact bending timings and cutting lengths; it also tests tube geometries in advance for feasibility. Tube data and bending results are documented with accuracy and they can then be replicated 100%. Easy programming from the desk, fast estimating of new projects, collision testing before running the machine and direct upload of the tube bending sequence to tube bender.
Catalog Download
transfluid® offers the complete package for the production of tubing.
Download our new catalogue.
